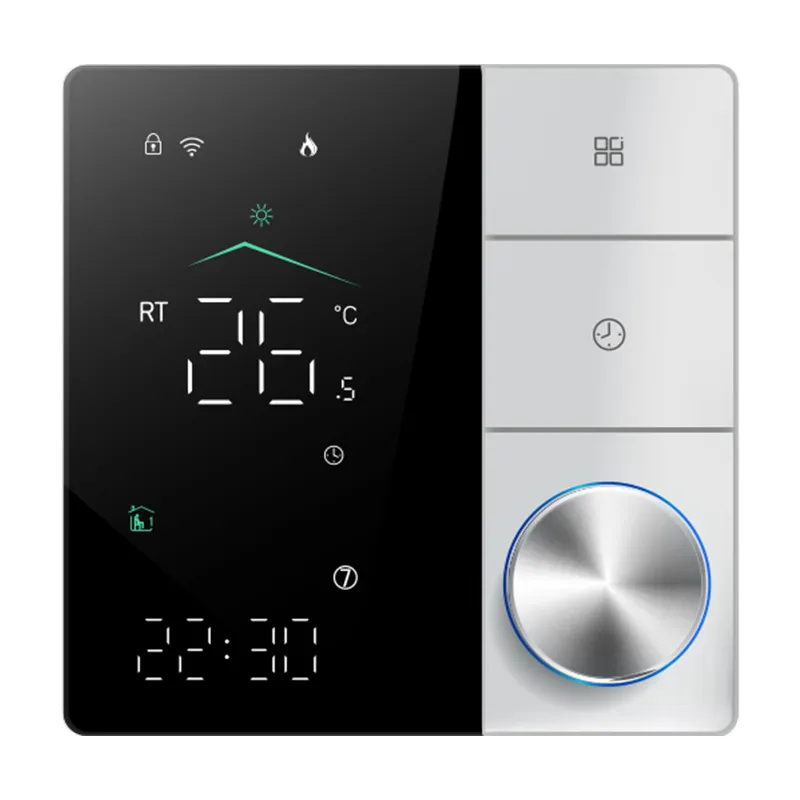

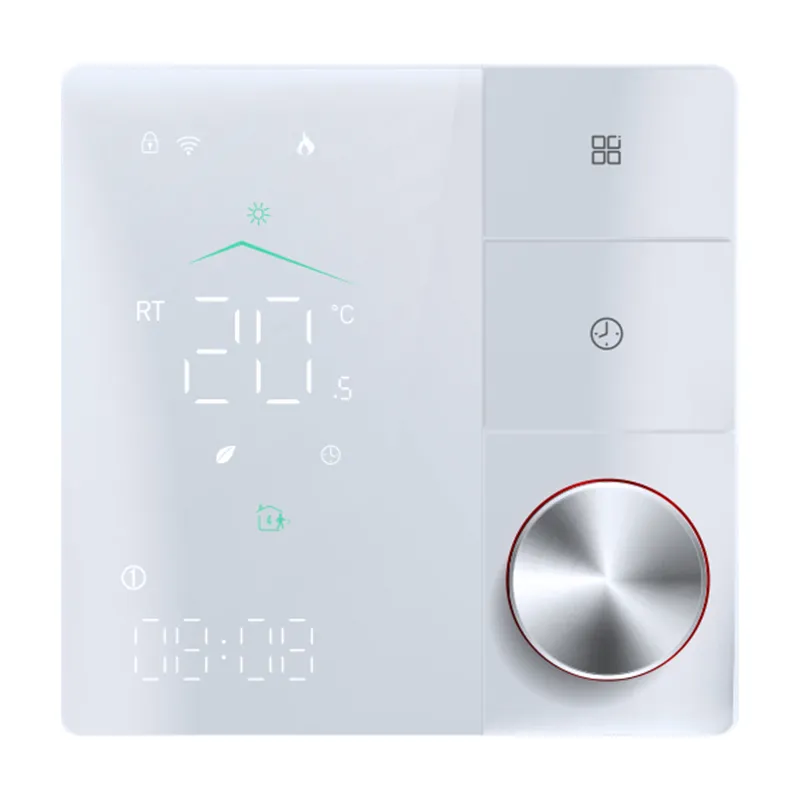

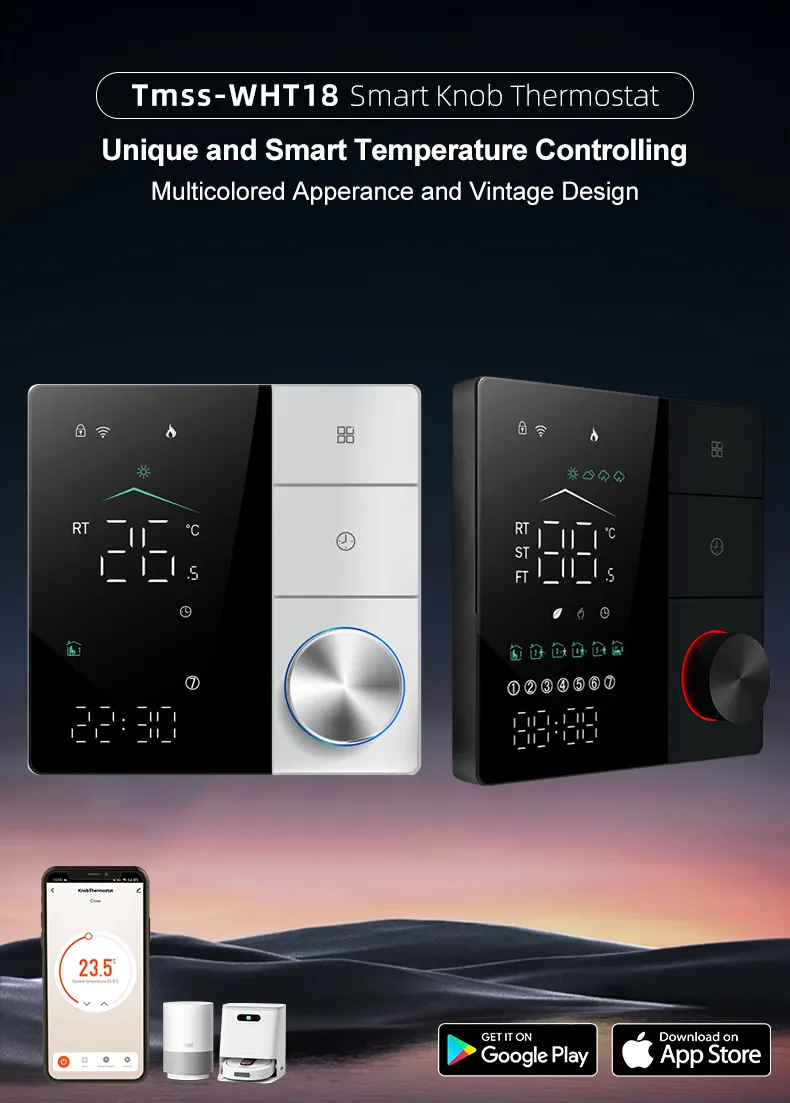

Thermostat Tmss-WHT18
Thermostat Tmss-WHT18

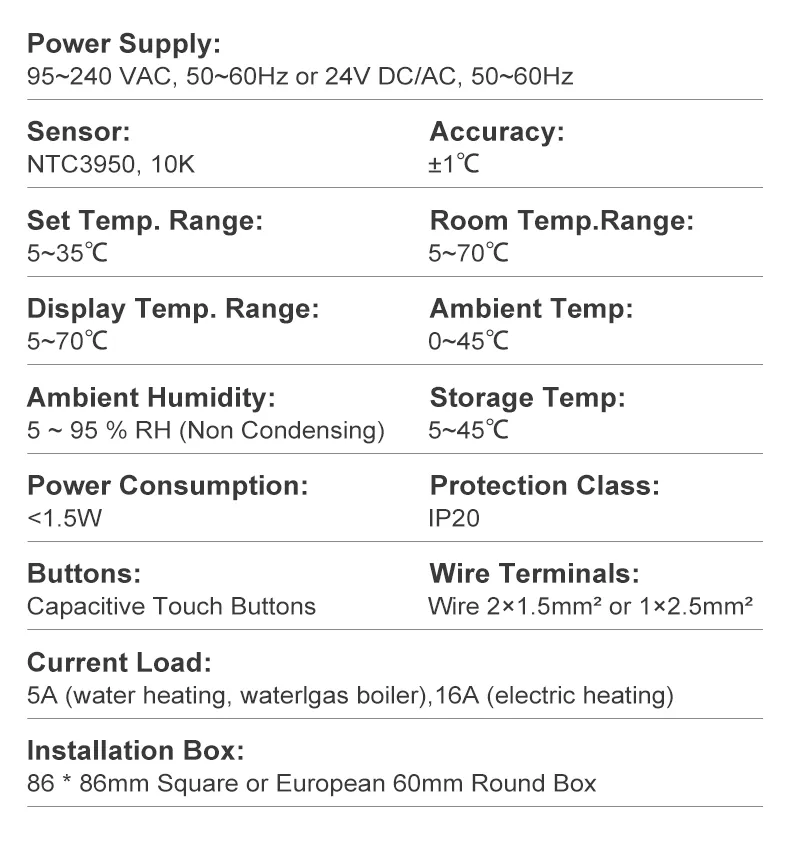

- Power Supply: 95~240VAC.50~60Hz or 24VDC/AC.50~60Hz
- Sensor: NTC3950.10K
- Accuracy: ±1℃
- Set Temp.Range: 5~35℃
- Room Temp.Range: 5~70℃
- Ambient Temp: 0~45℃
- Display Temp.Range: 5~70℃
- Ambient Humidity: 5~95%RH（Non Condensing)
- Storage Temp: 5~45℃
- Protection Class: IP20
- Power Consumption: <1.5W
- Wire Terminals: Wire2×1.5mm²or1×2.5mm²

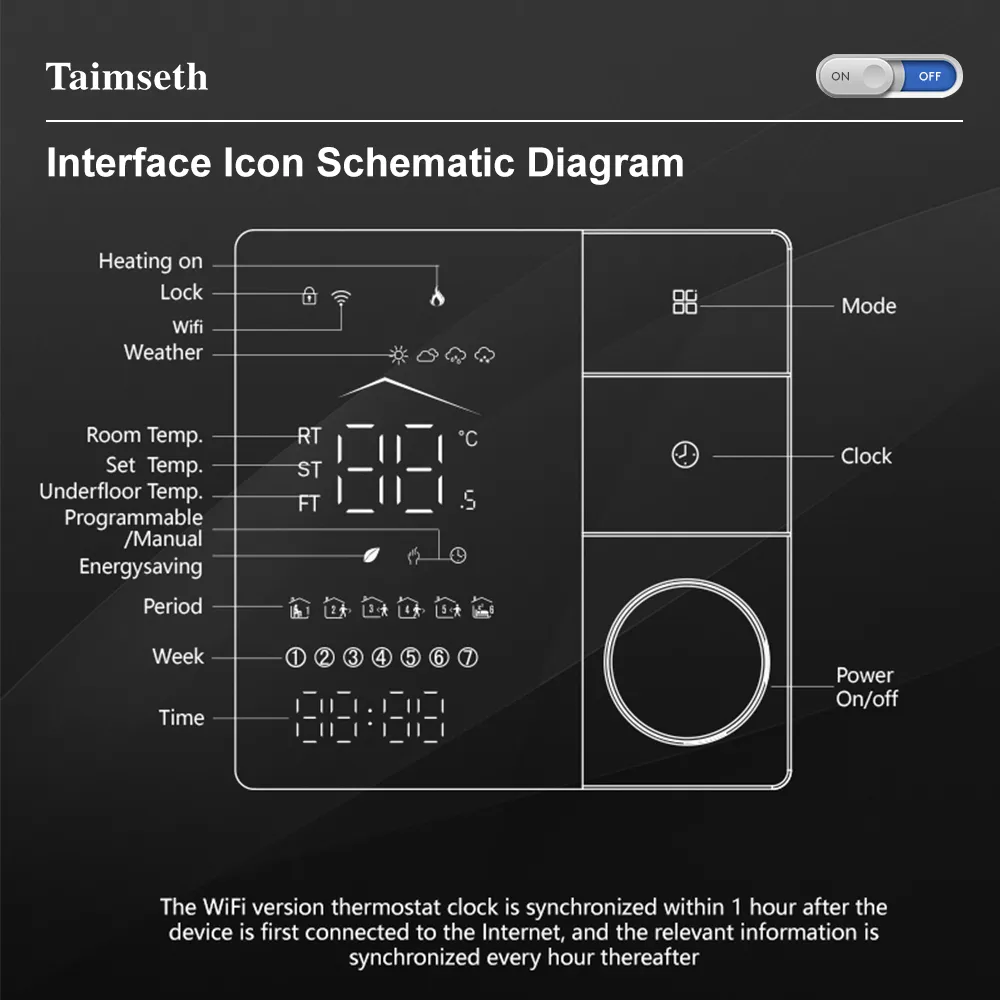

- Buttons: Capacitive Touch Buttons
- Current Load: 5A(water heating,waterlgas boiler),16A(electric heating)

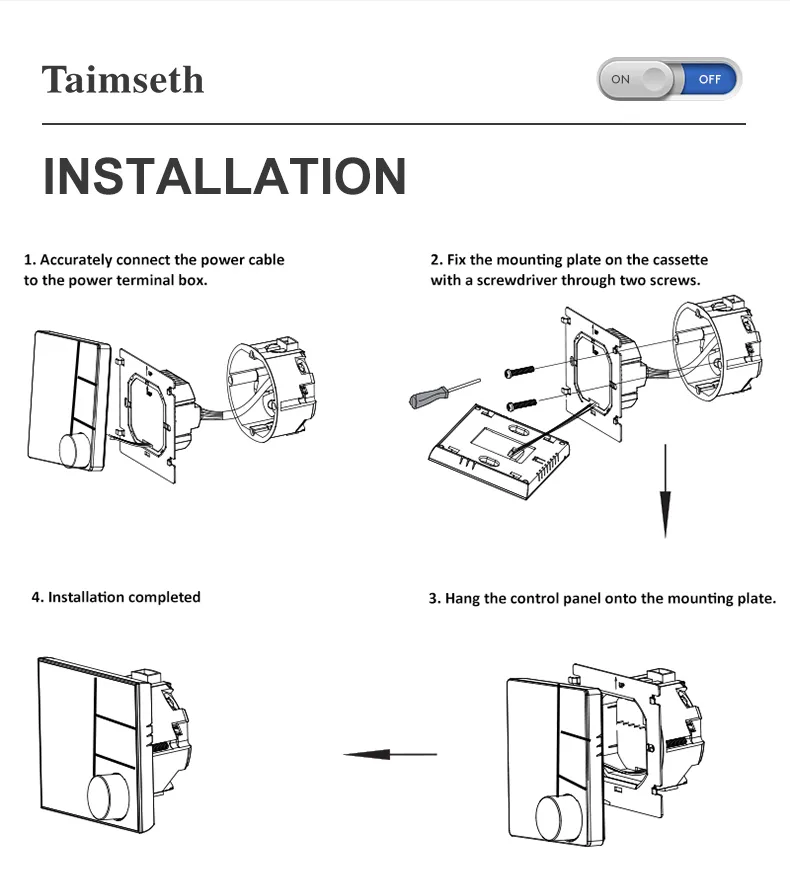

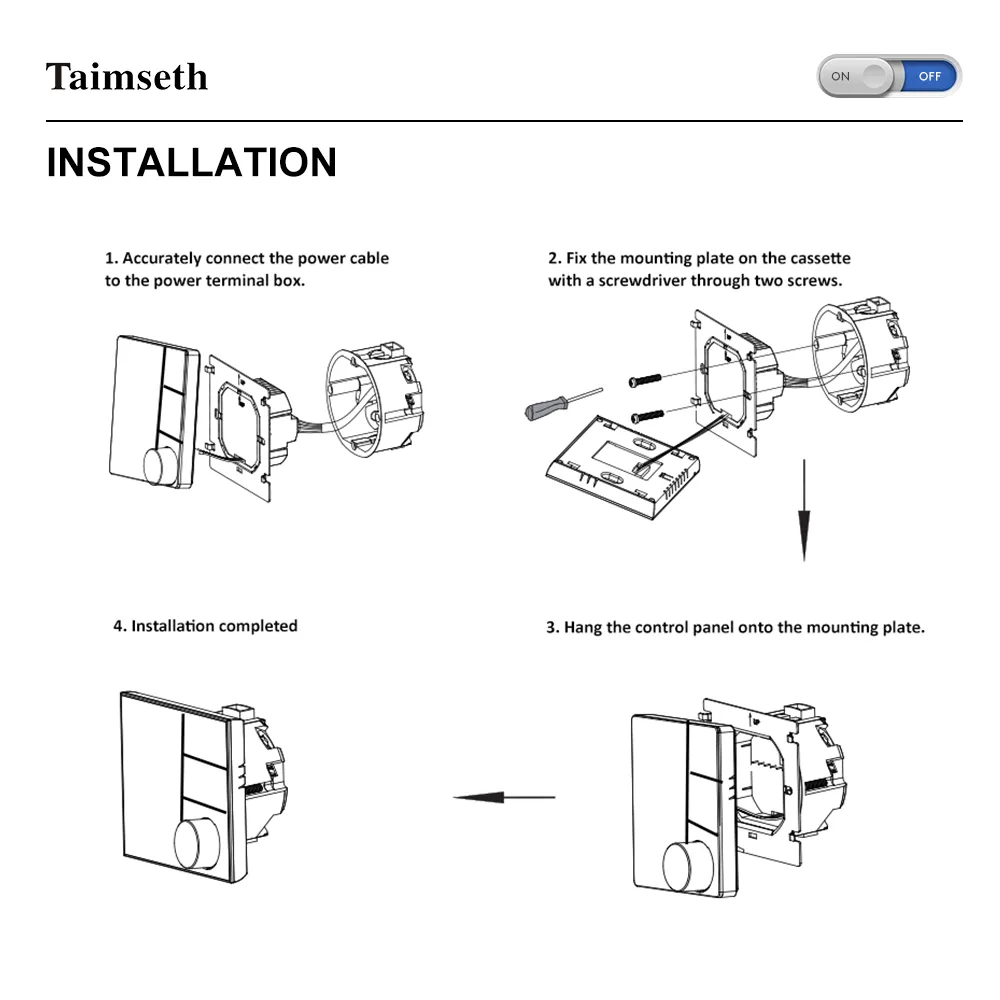

- Installation Box: 86*86mm Sguareor European 60mm Round Box
