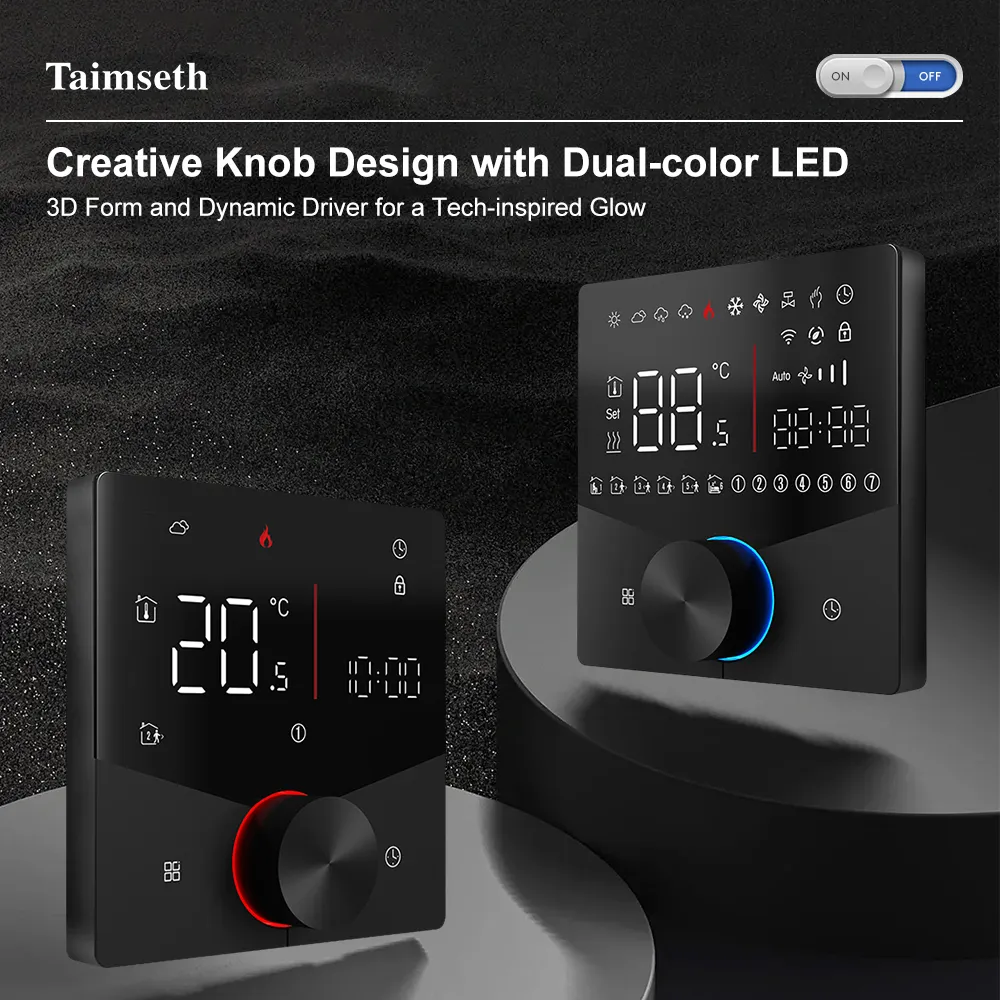

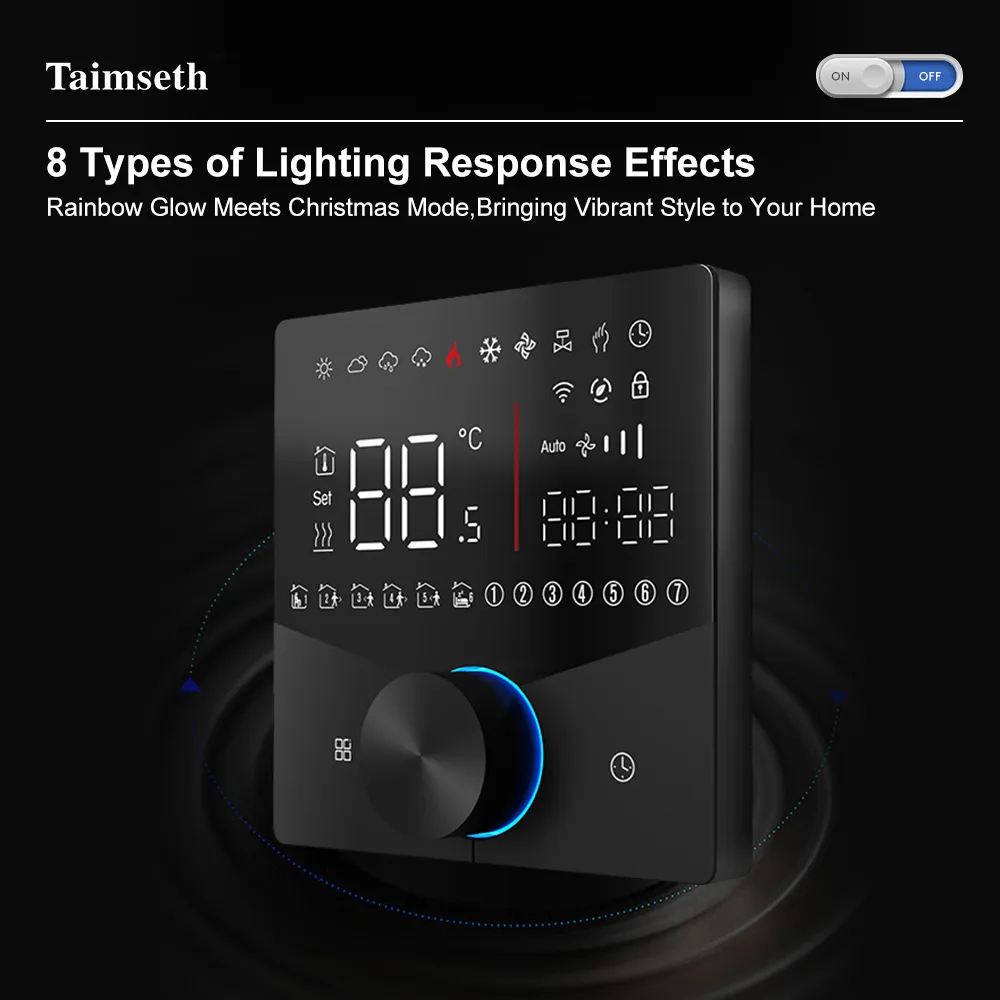

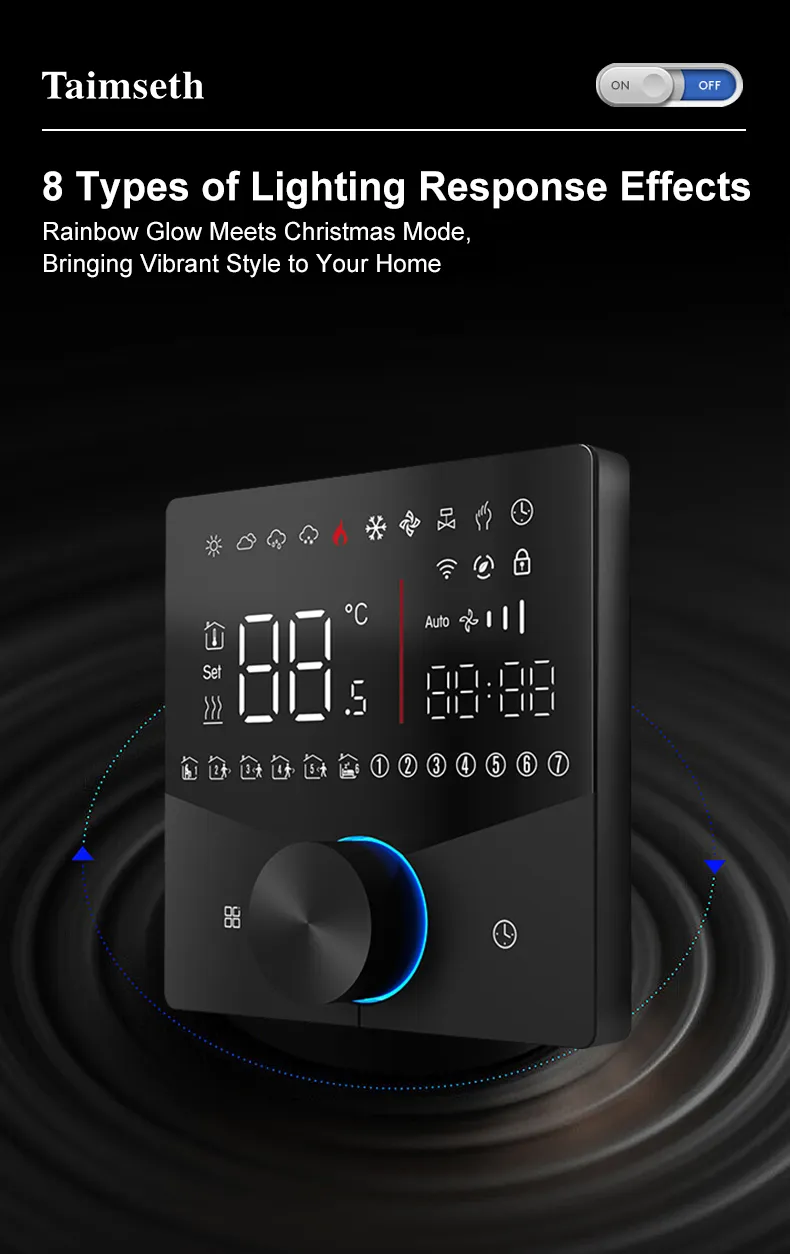

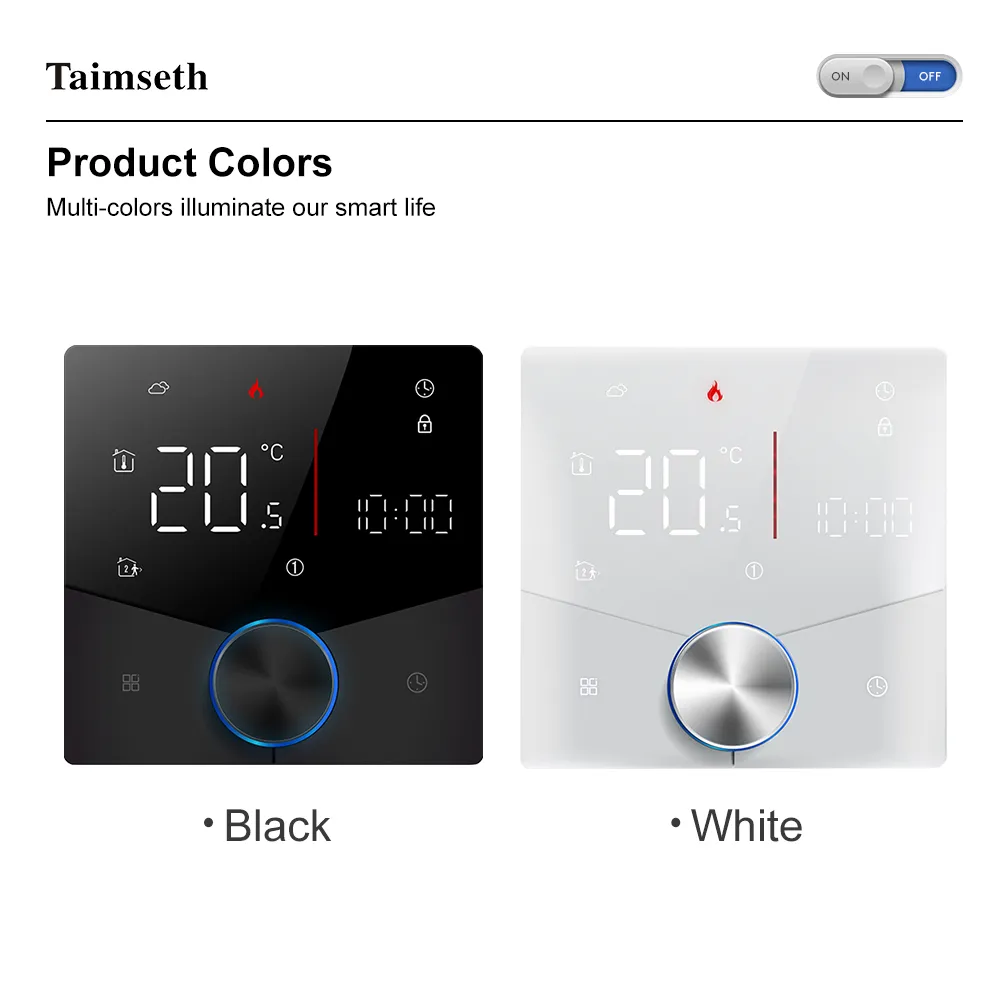

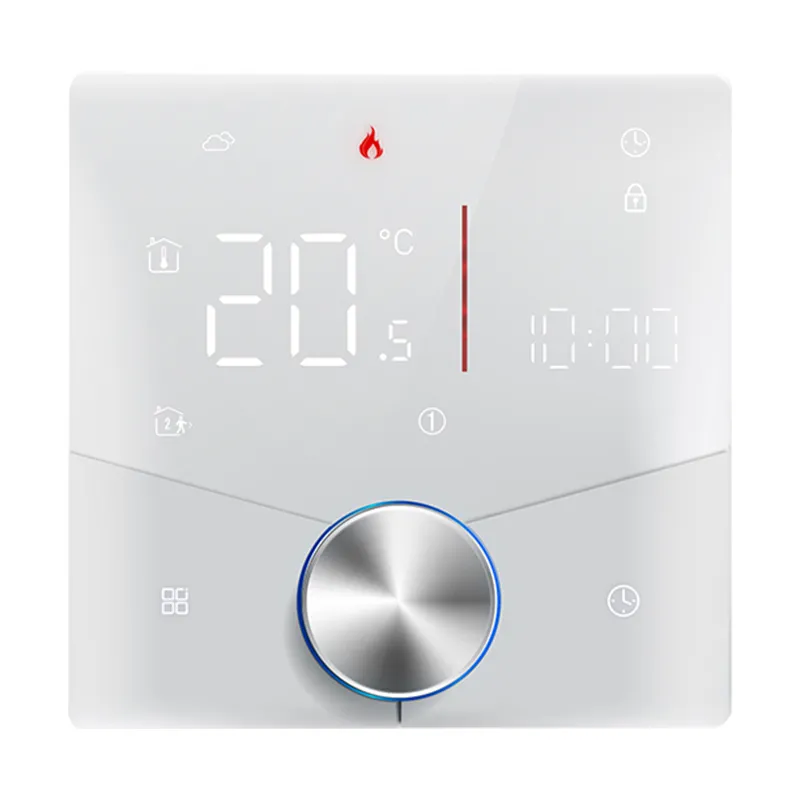

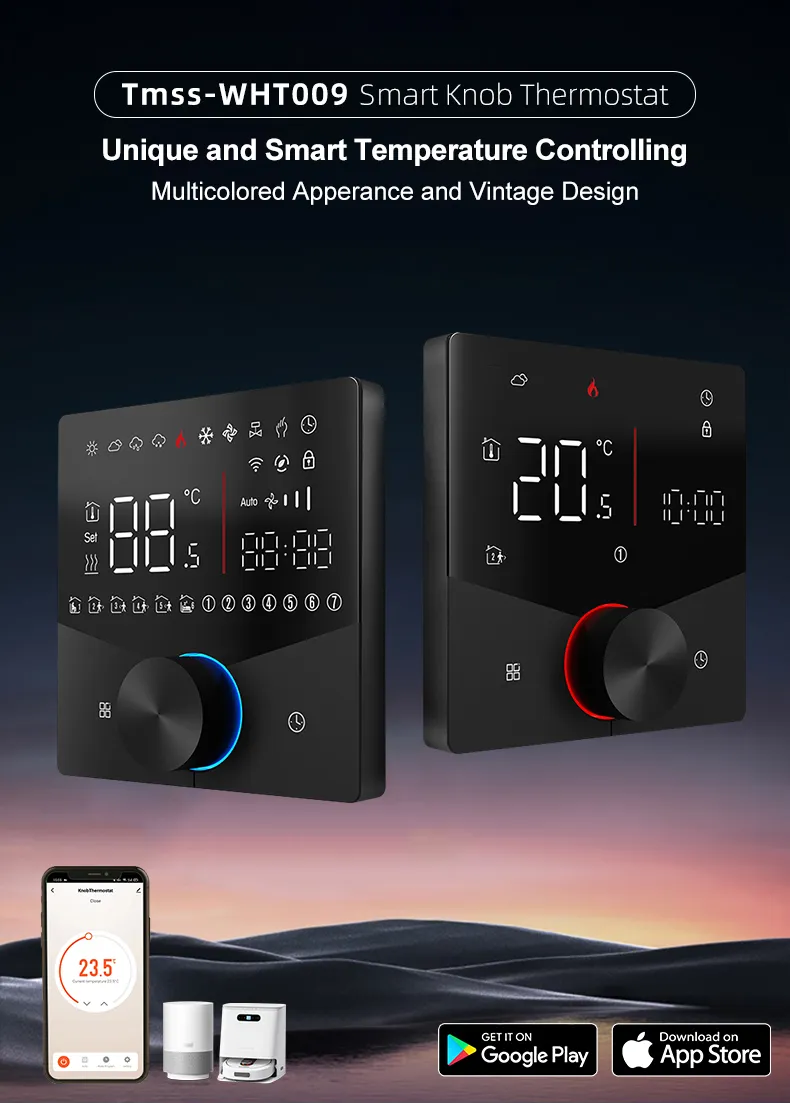

Thermostat Tmss-WHT009
Thermostat Tmss-WHT009

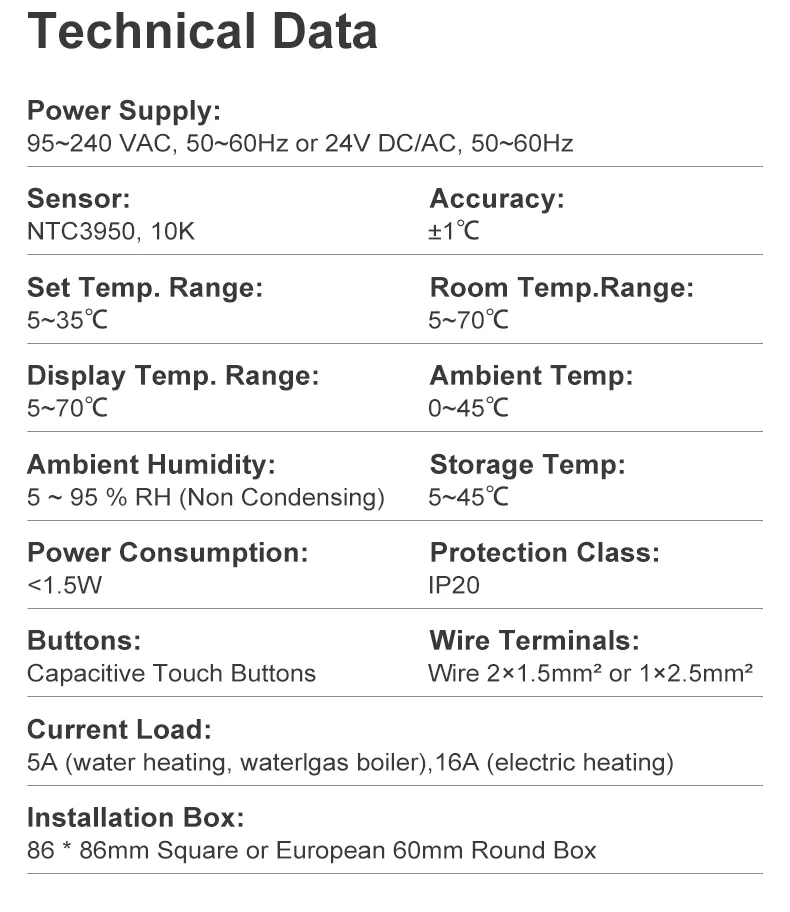

- Power Supply: 95~240 VAC,50~60Hz or 24V DCIAC,50~60Hz
- Sensor: NTC3950,10K
- Accuracy: ±1℃
- Set Temp.Range: 5~35℃
- Room Temp.Range: 5~70℃
- Display Temp.Range: 5~70℃
- Ambient Temp:0~45℃
- Ambient Humidity: 5～95%RH(Non Condensing)
- Storage Temp: 5~45℃
- Power Consumption: <1.5W
- Protection Class: IP20

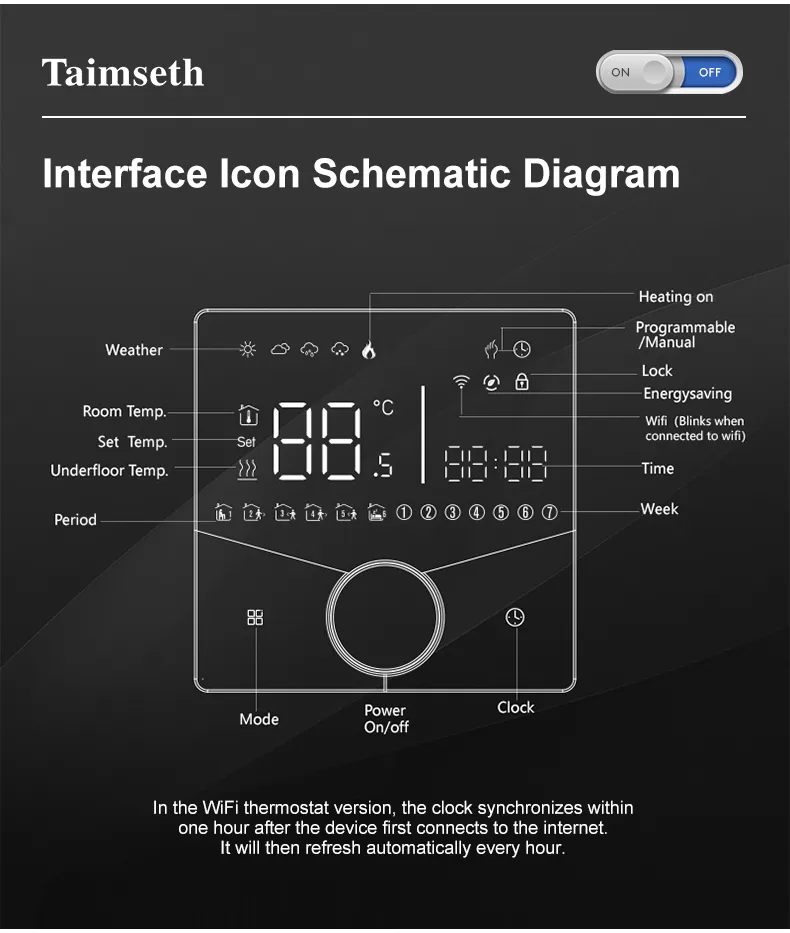

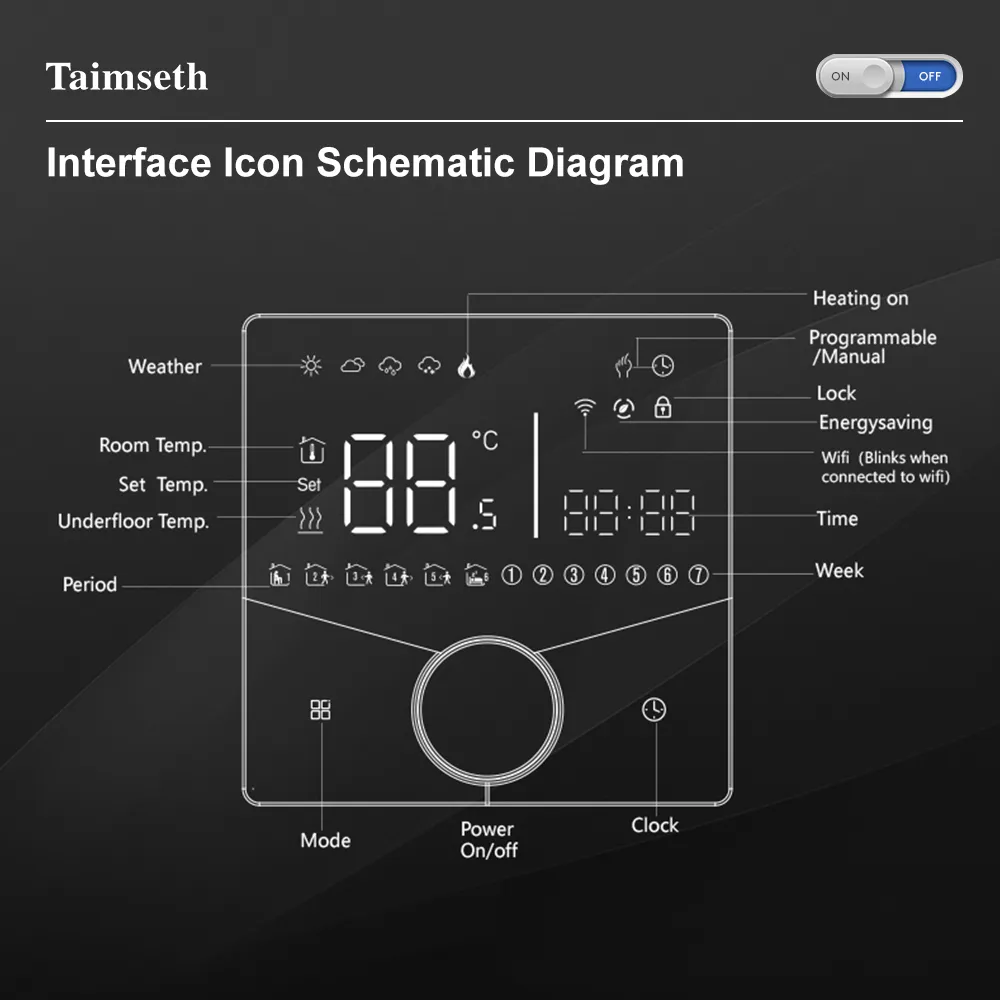

- Buttons: Capacitive Touch Buttons
- Wire Terminals: Wire 2×1.5mm²or 1×2.5mm²
- Current Load: 5A(water heating,waterlgas boiler),16A(electric heating)

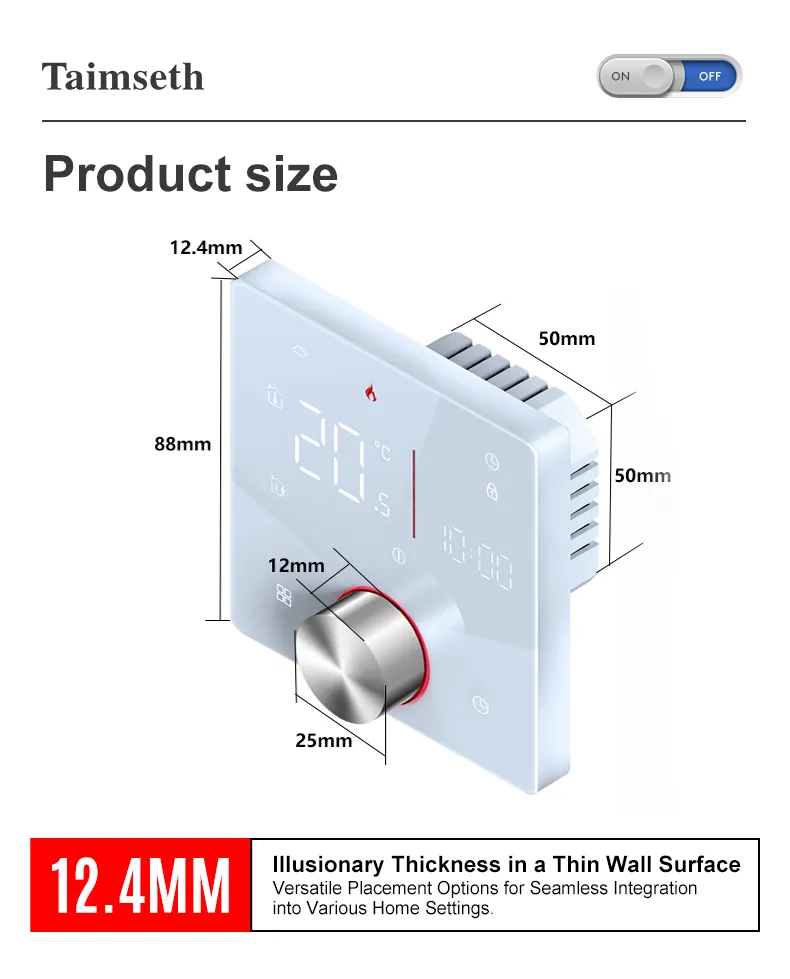

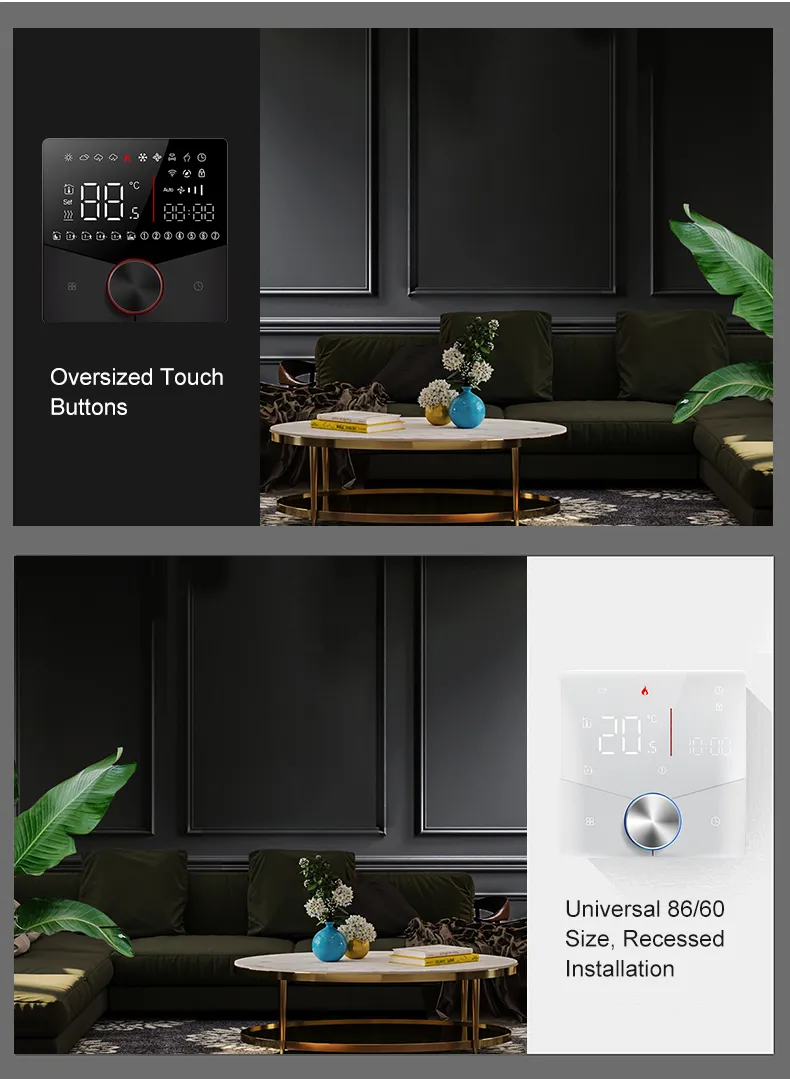

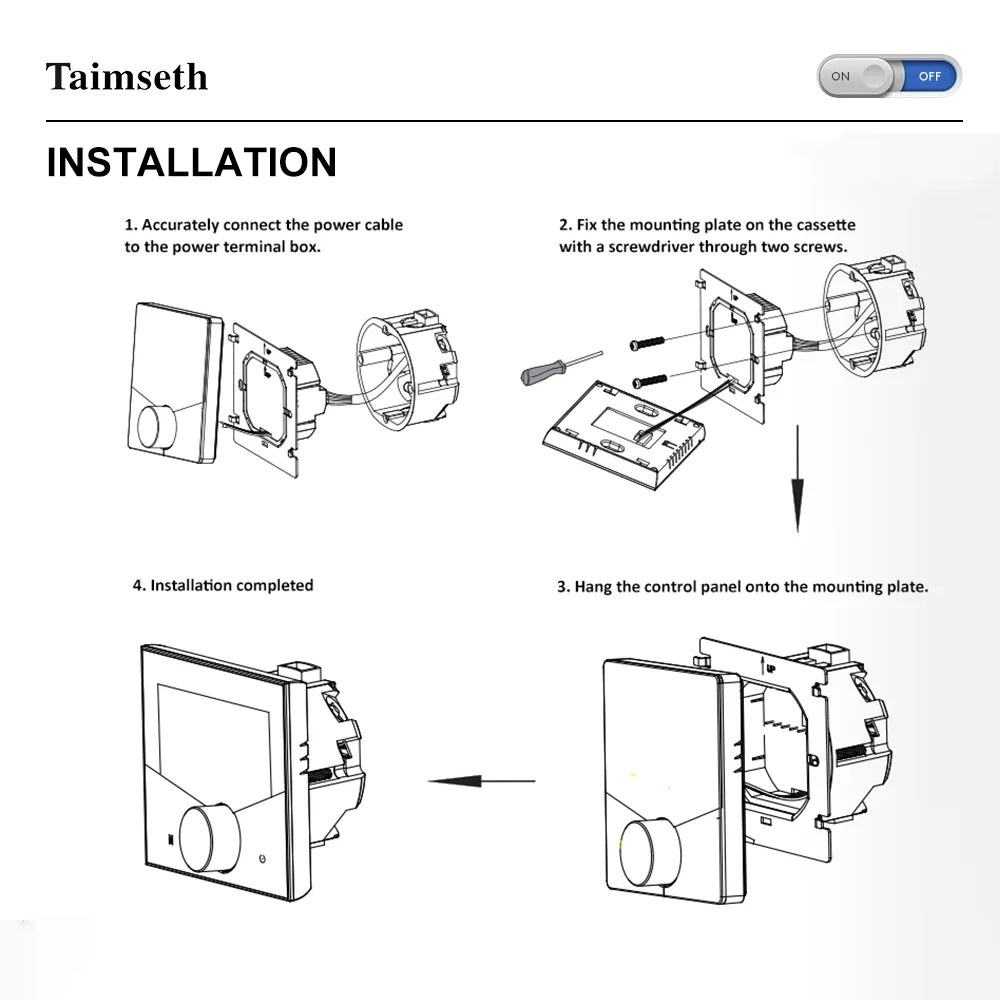

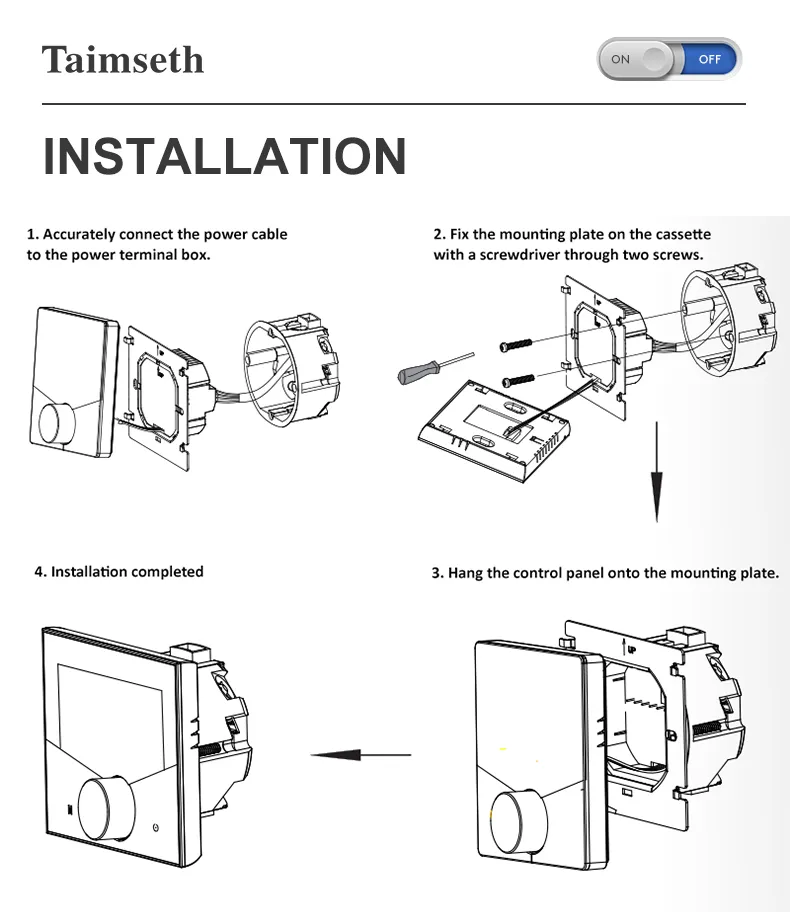

- Installation Box: 86*86mm Square or European 60mm Round Box
