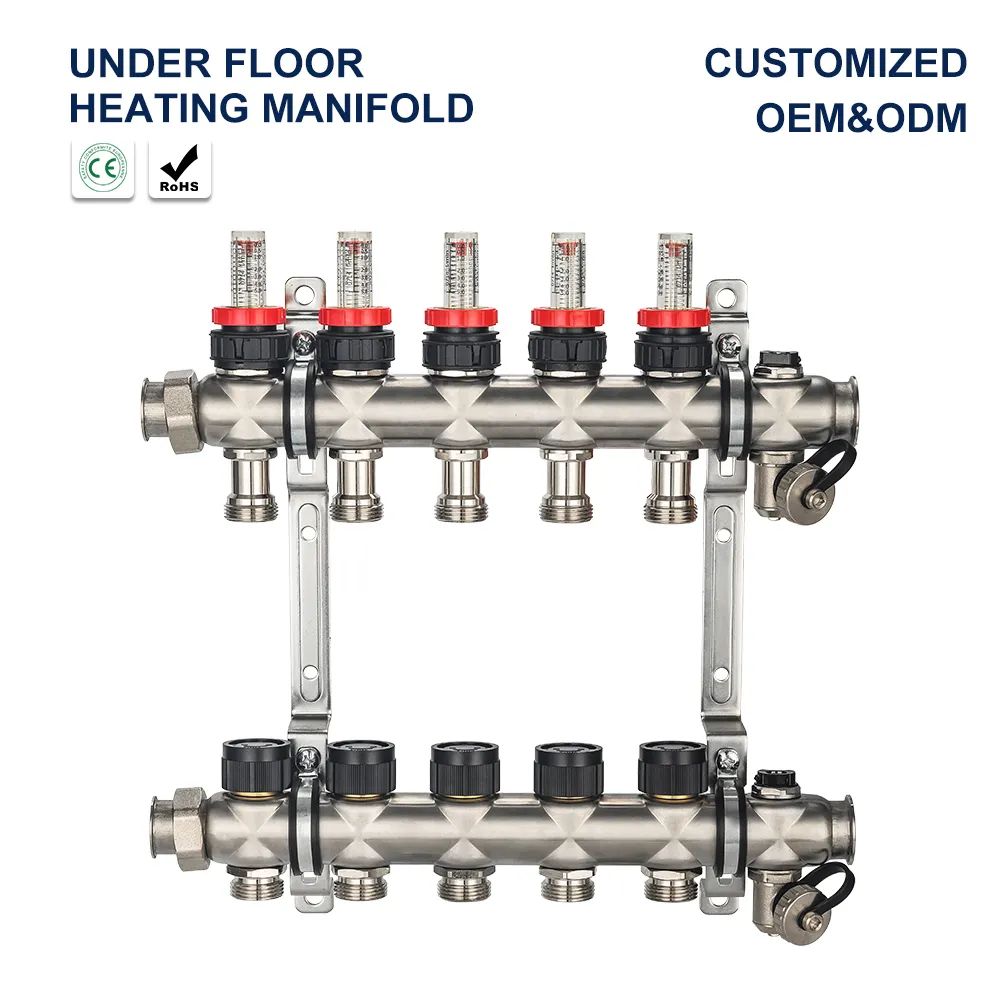

Stainless Steel Manifold Tmss-FZ001
Stainless Steel Manifold Tmss-FZ001
- Circuit Qty: 2-12 loops optional
- Working temperature range: 5-100℃
- Maxmum working pressure: 10 bar

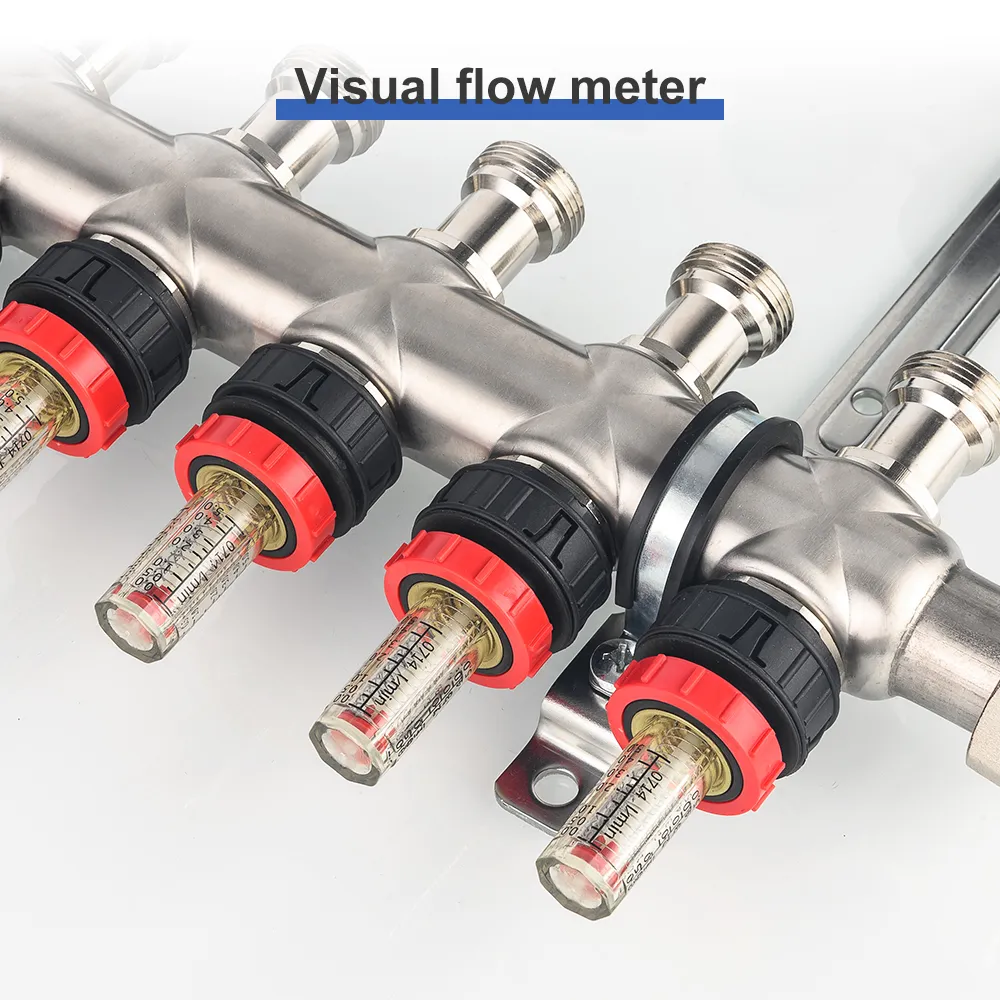

- Flowmeter scale: 0-5L/min
- Medium: water or a solution of water and glycol up to 30%
- Flow Adjustment: Adjustable flow meters on the supply manifold

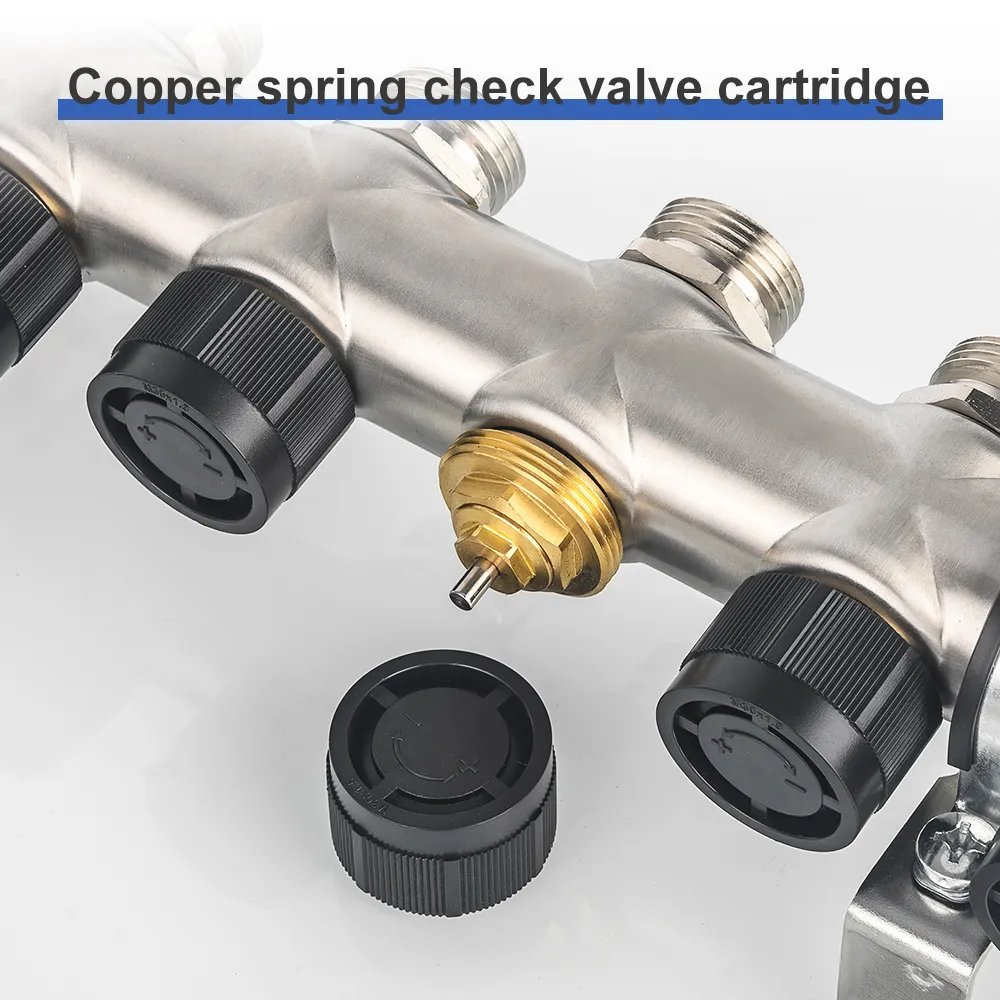

- Return Control: Manual or actuator-operated valves on the return manifold

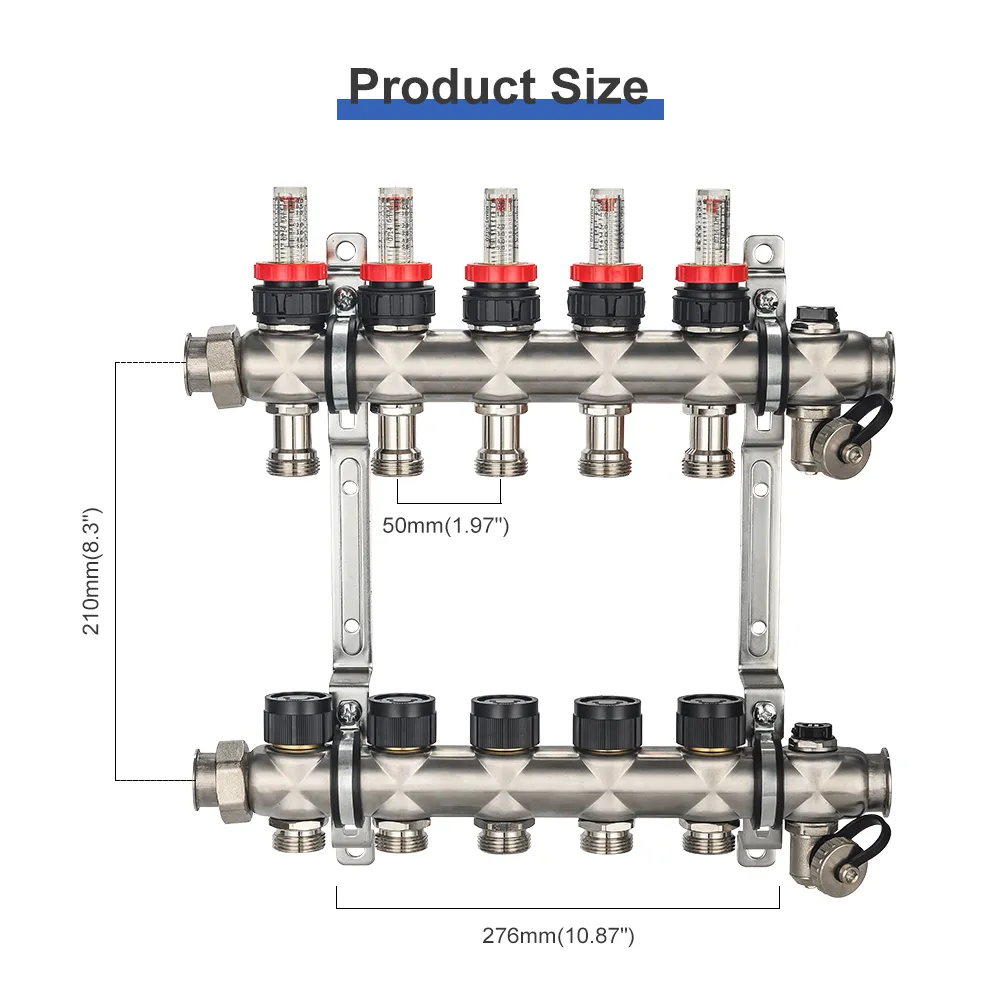

- Centre distance: 50mm
- Connection Thread(Main Body): G1″(ISO 228)
- Outlet Connection: Eurocone 3/4″ (for ∅16×2 mm or ∅20×2 mm pipe)

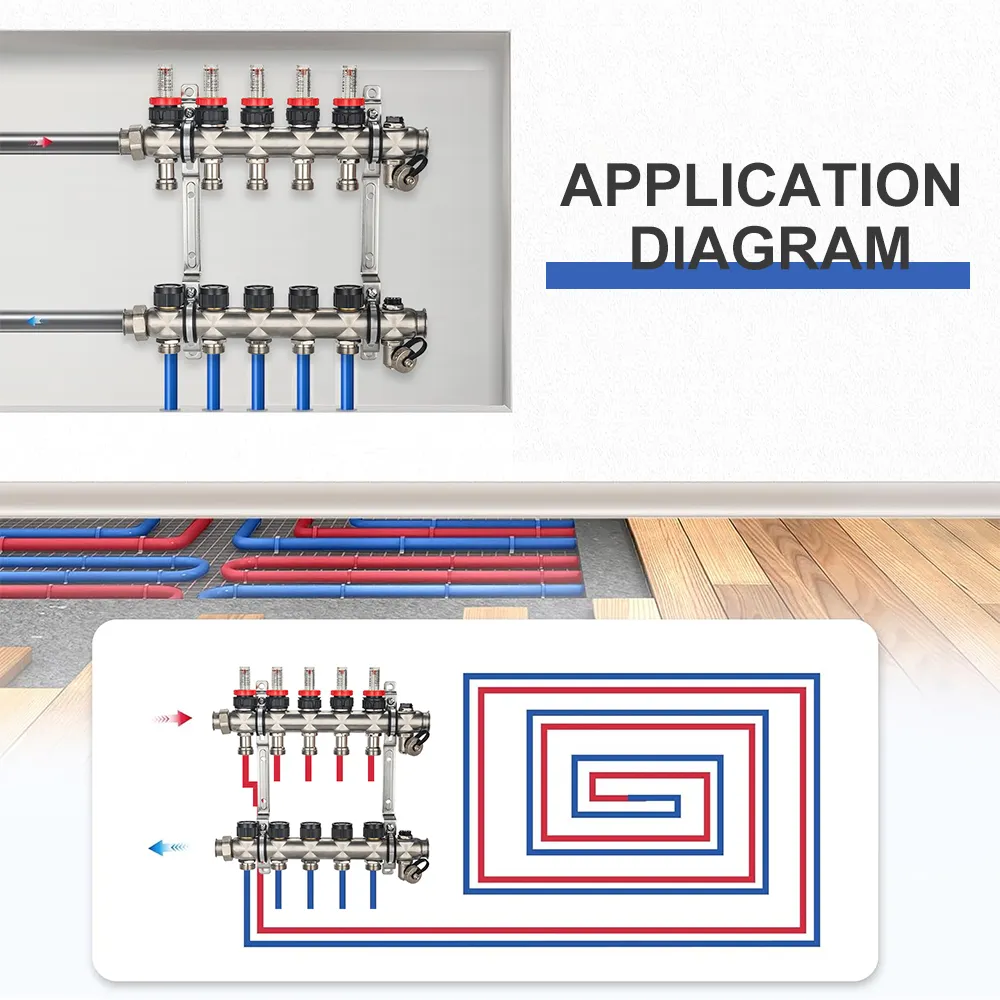

- Applicable System: Underfloor heating system
- Compliance: ISO 9001 /CE certified
