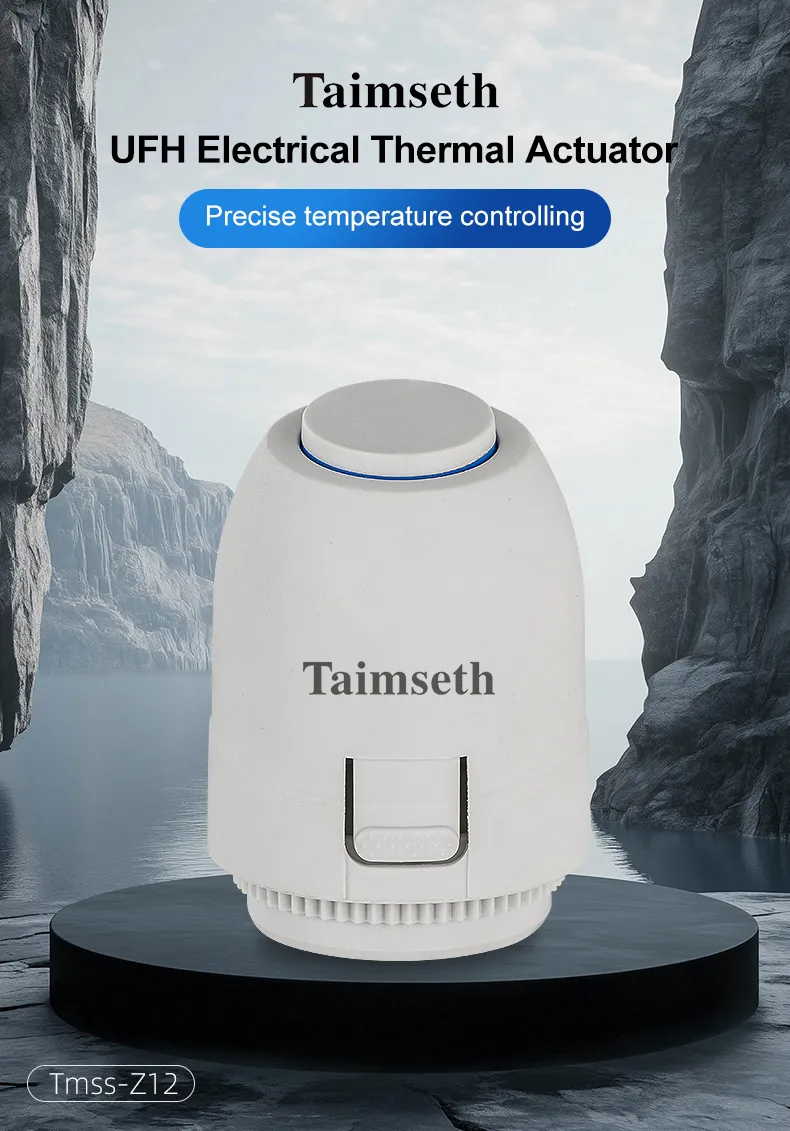

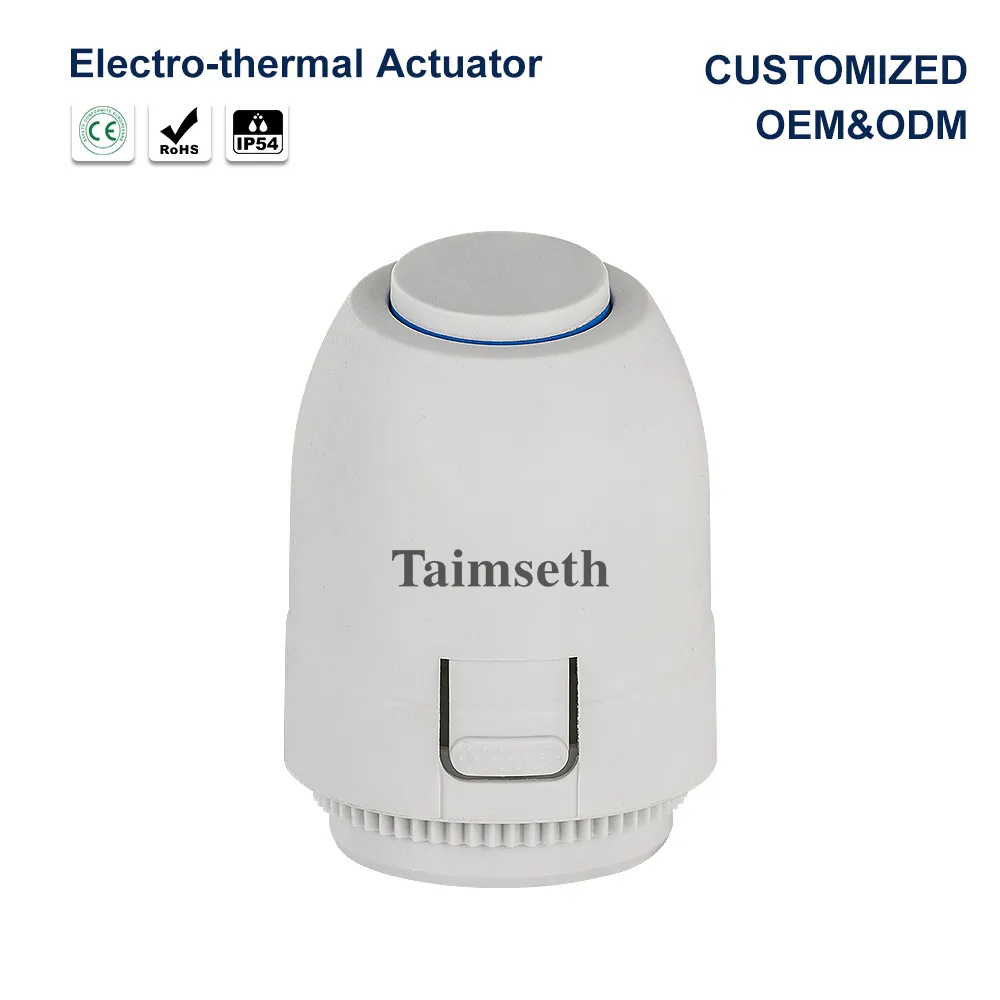

Thermo-electric actuator Tmss-Z12
Thermo-electric actuator Tmss-Z12

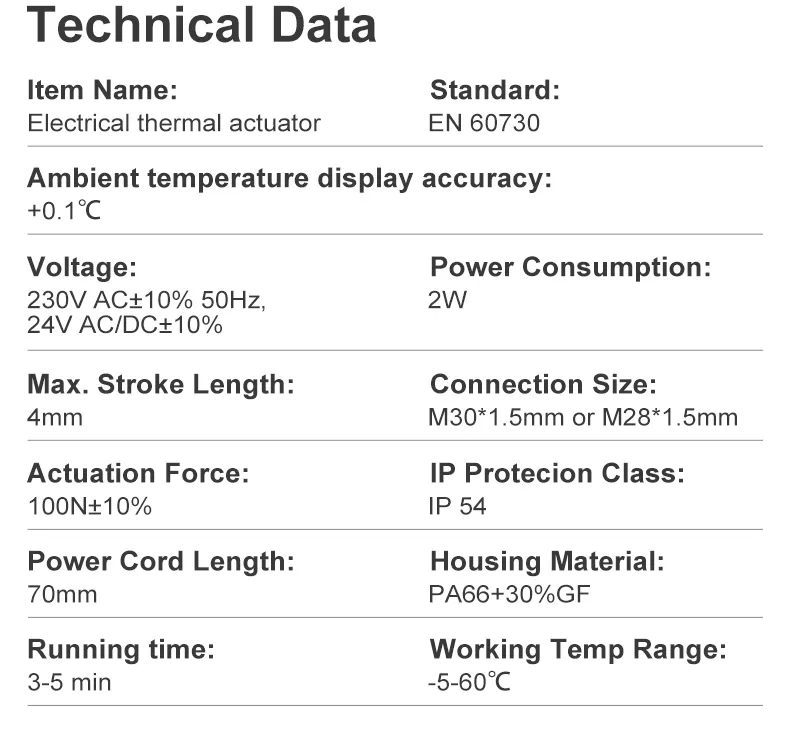

- Standard: EN 60730
- Ambient temperature display accuracy: +0.1℃

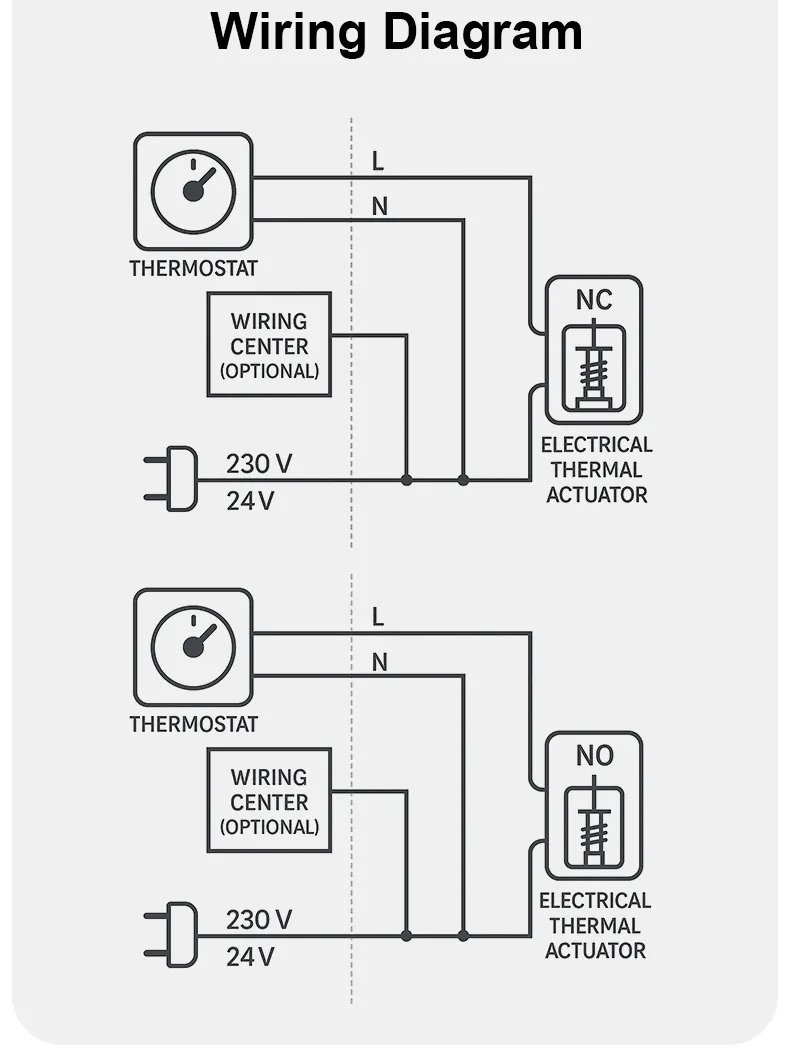

- Voltage: 230V AC±10%50Hz, 24V AC/DC±10%
- Power Consumption: 2W
- Max.Stroke Length: 4mm
- Connection Size: M30*1.5mm or M28*1.5mm
- Actuation Force: 100N±10%
- IP Protecion Class: IP 54
- Power Cord Length: 70mm

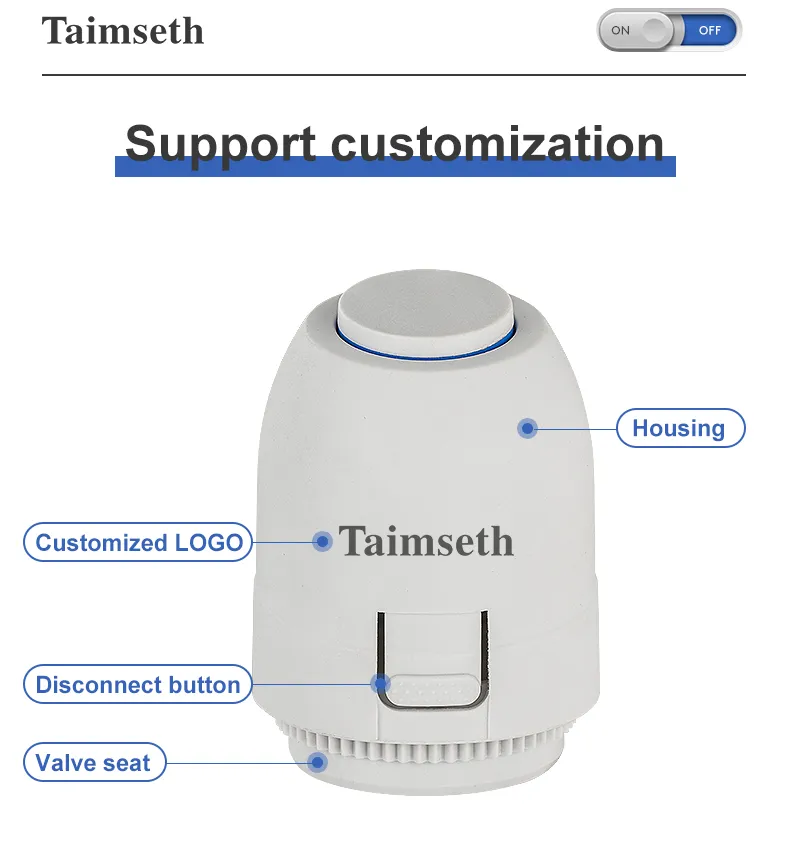

- Housing Material: PA66+30%GF
- Running time: 3-5 min
- Working Temp Range: -5-60℃
