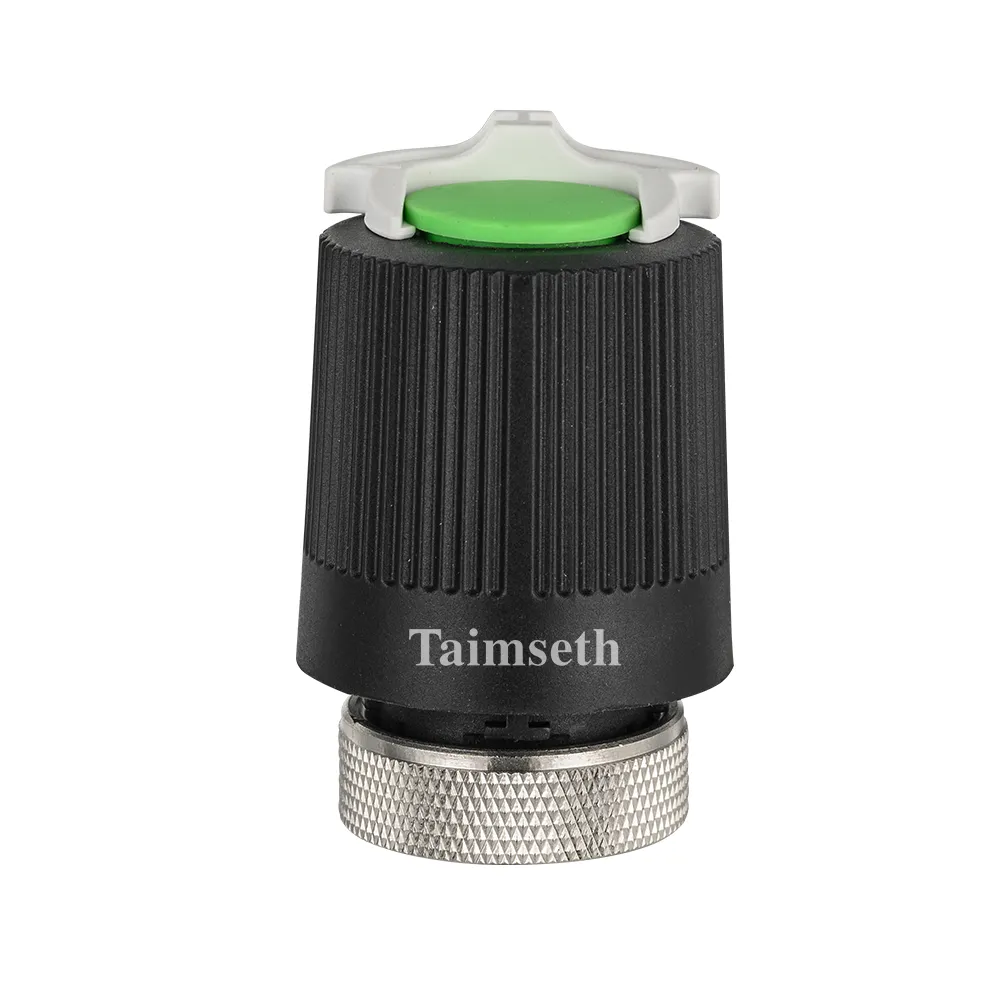

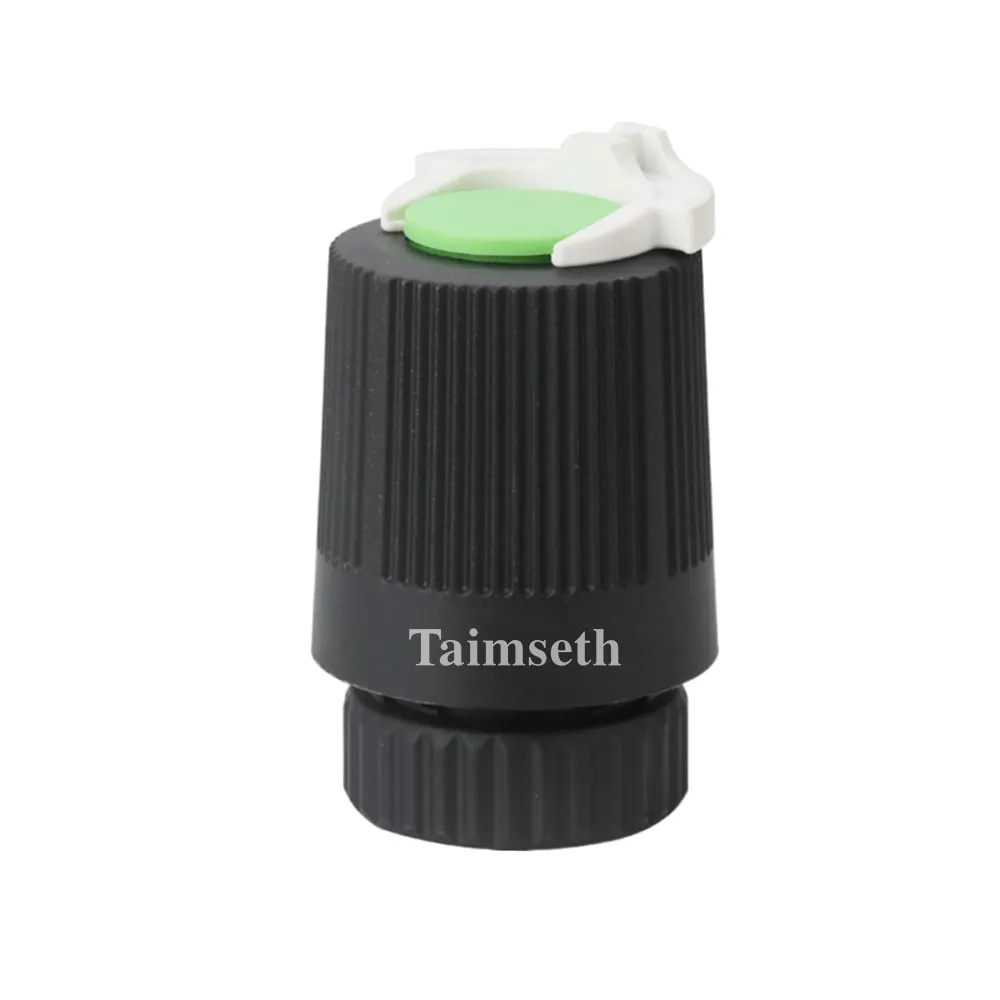

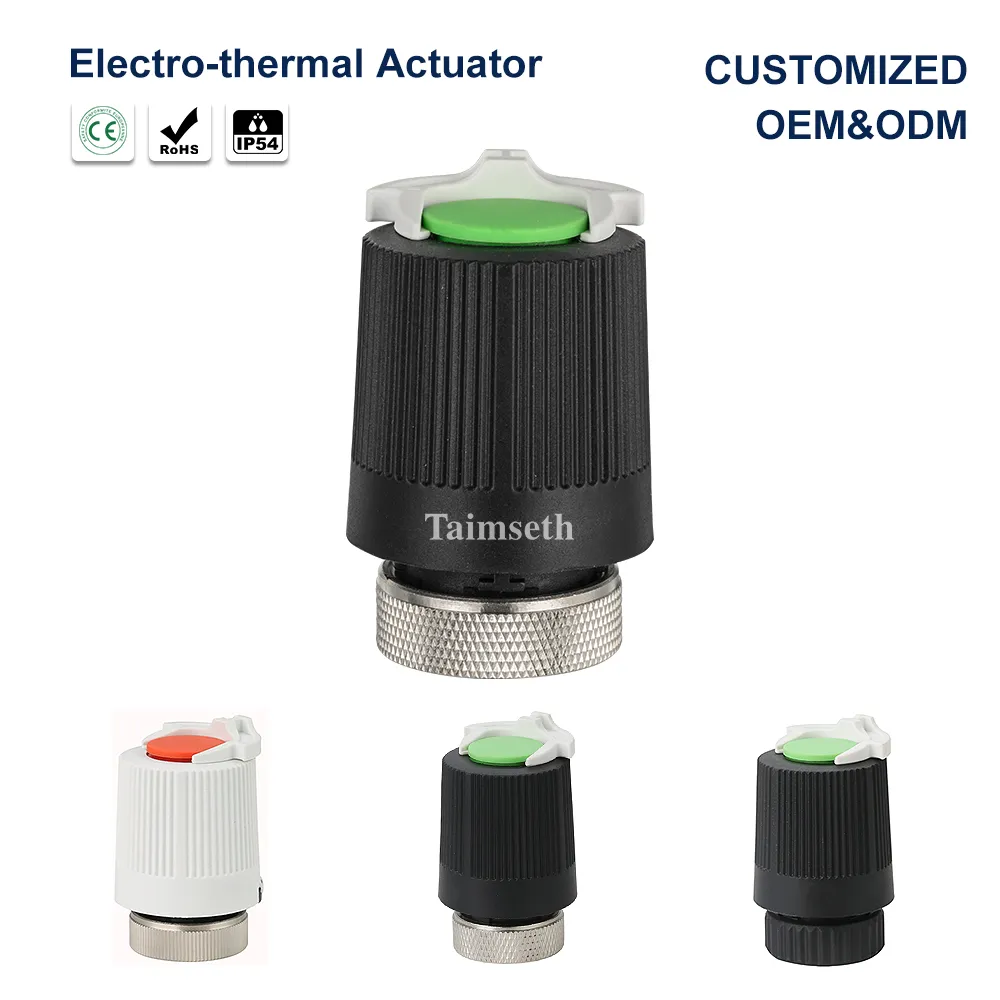

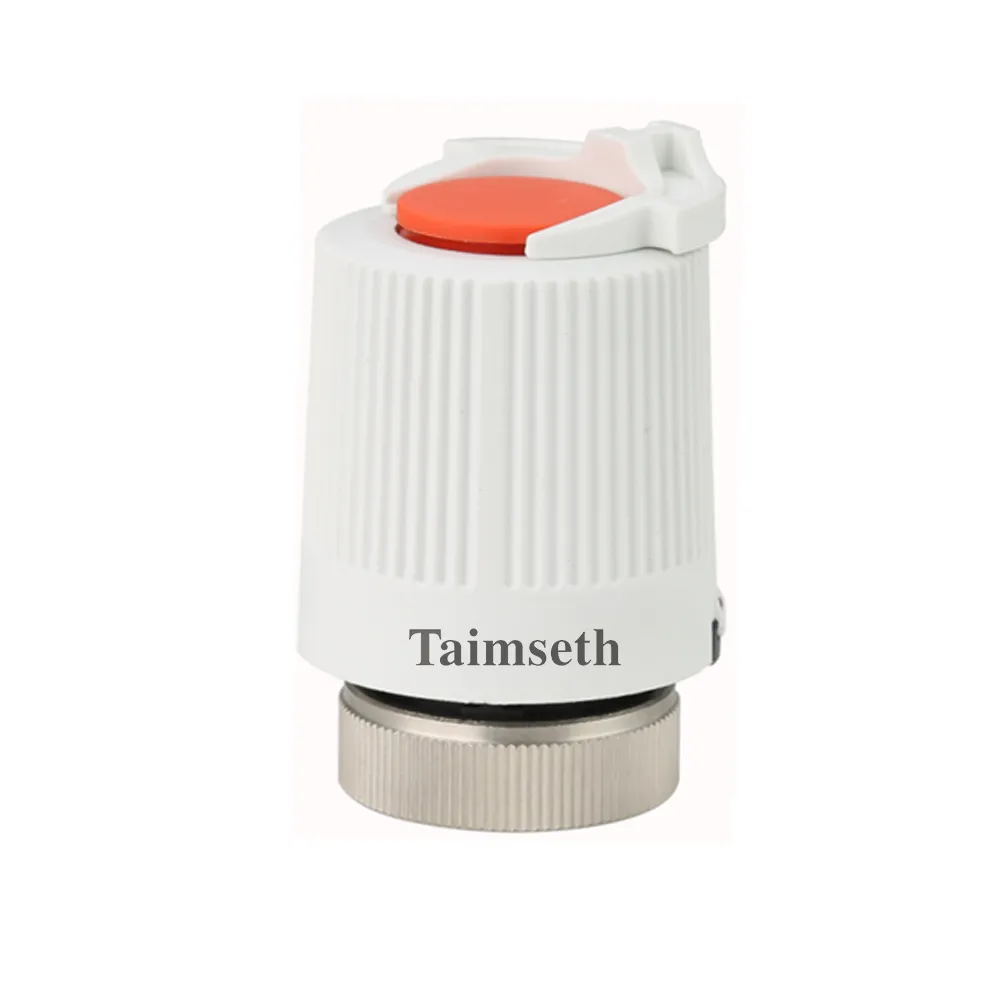

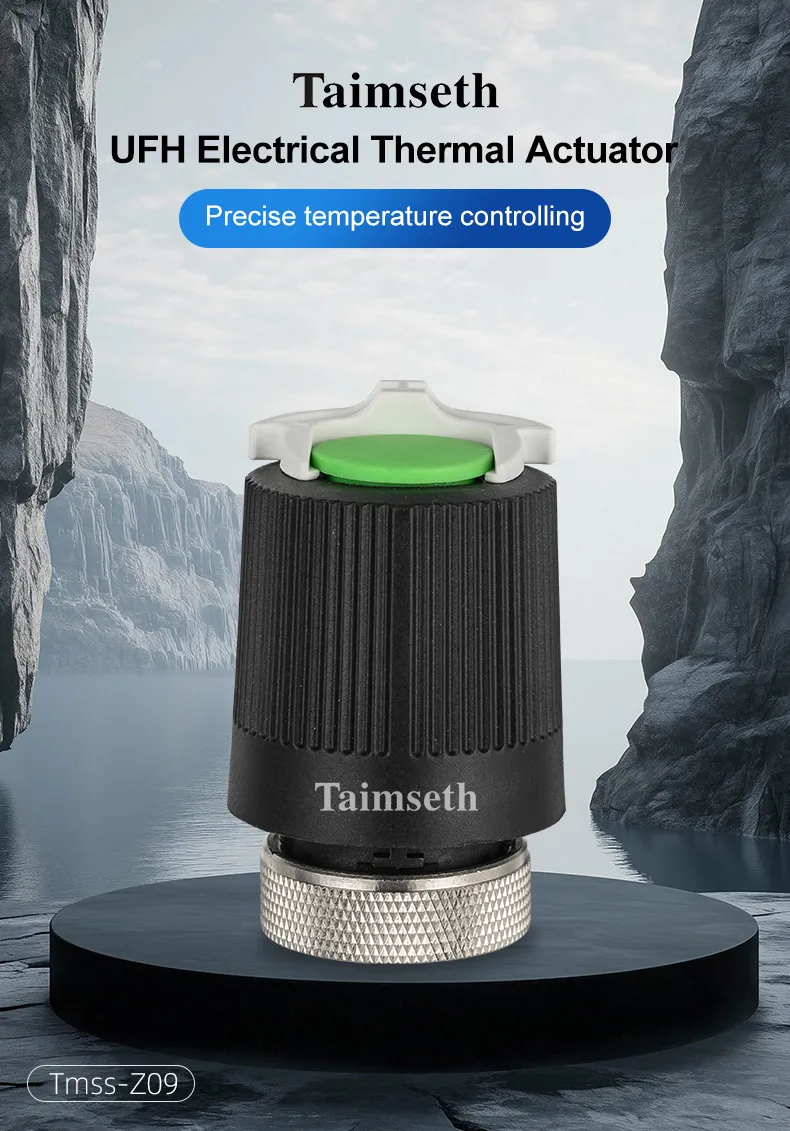

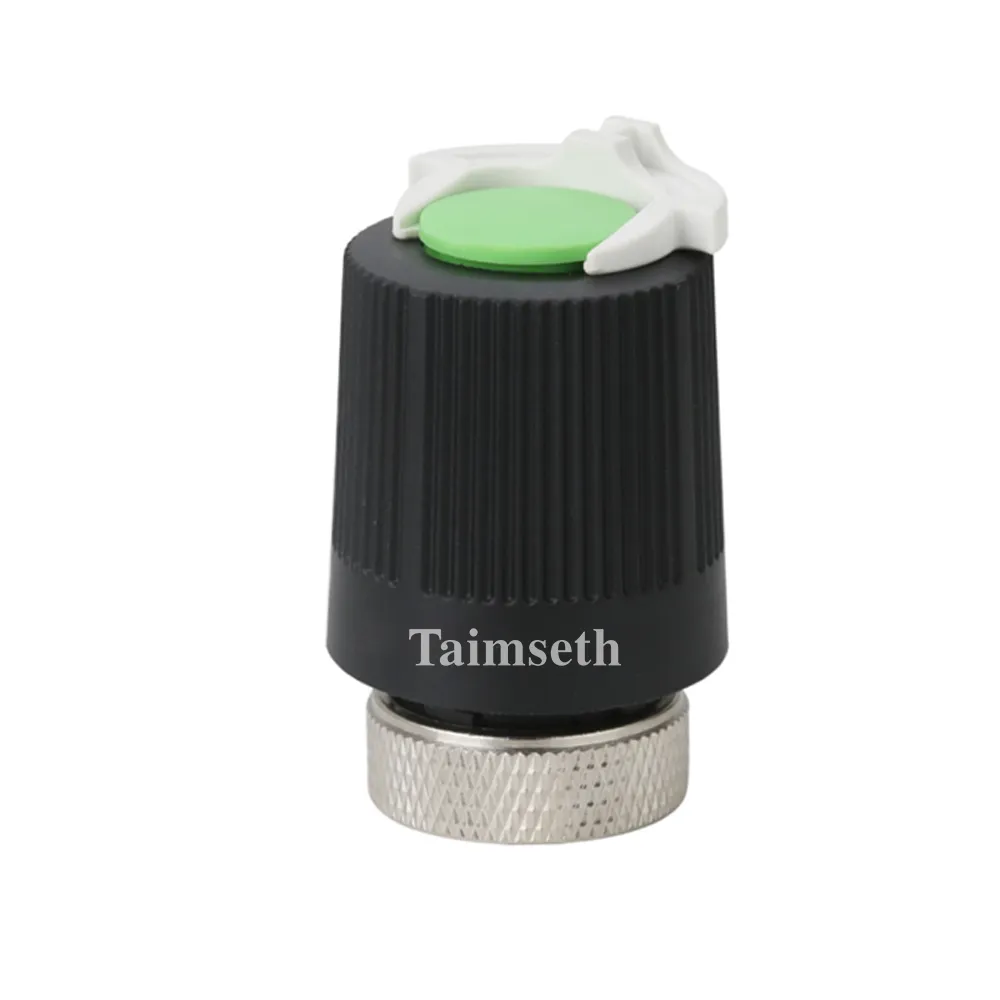

Thermo-electric actuator Tmss-Z09
Thermo-electric actuator Tmss-Z09
- Standard: EN 60730
- Ambient temperature display accuracy: +0.1℃

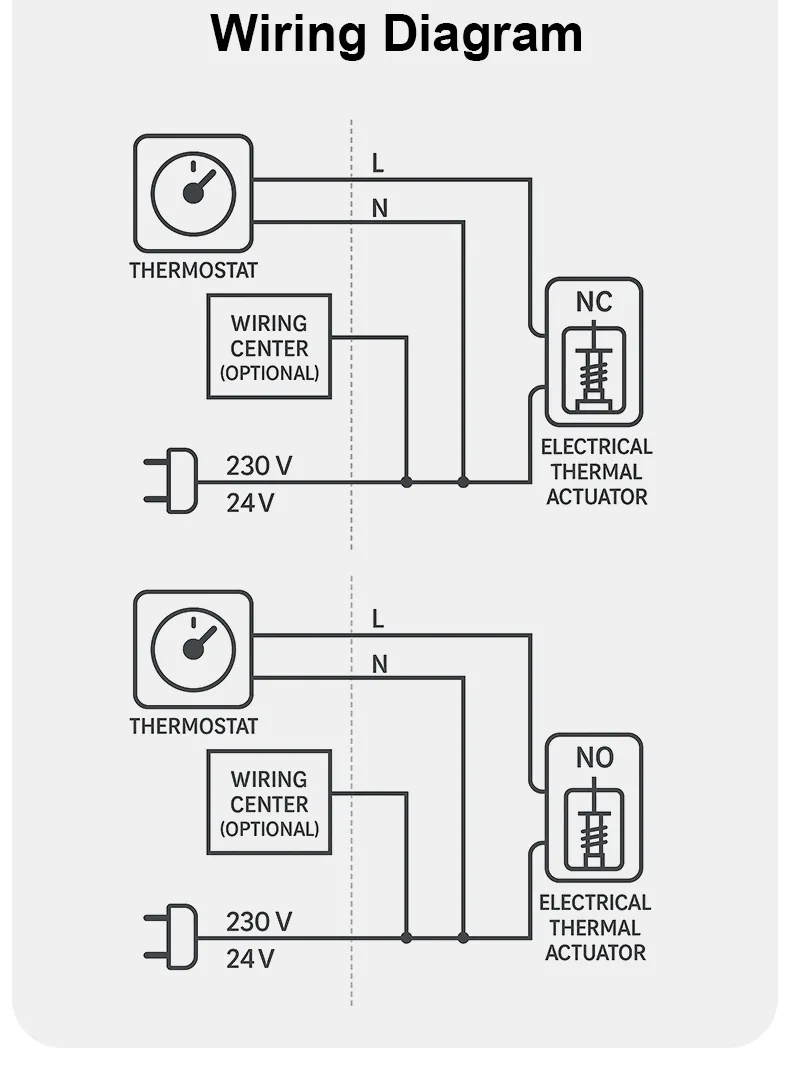

- Voltage: 230V AC±10% 50Hz, 24V AC/DC ±10%
- Power Consumption: 2W
- Max.Stroke Length: 4mm

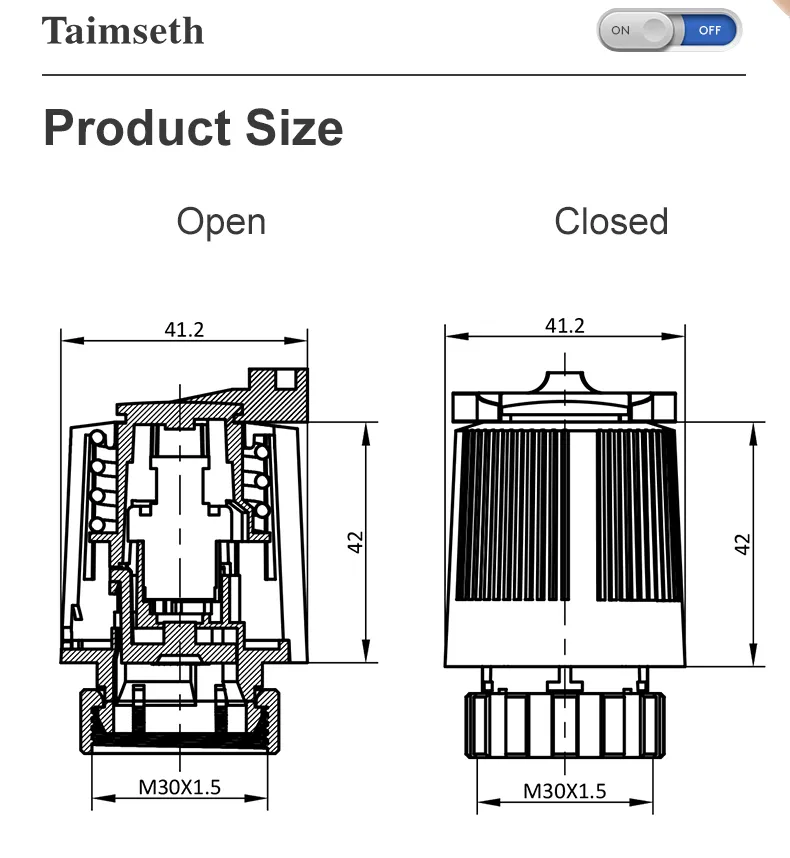

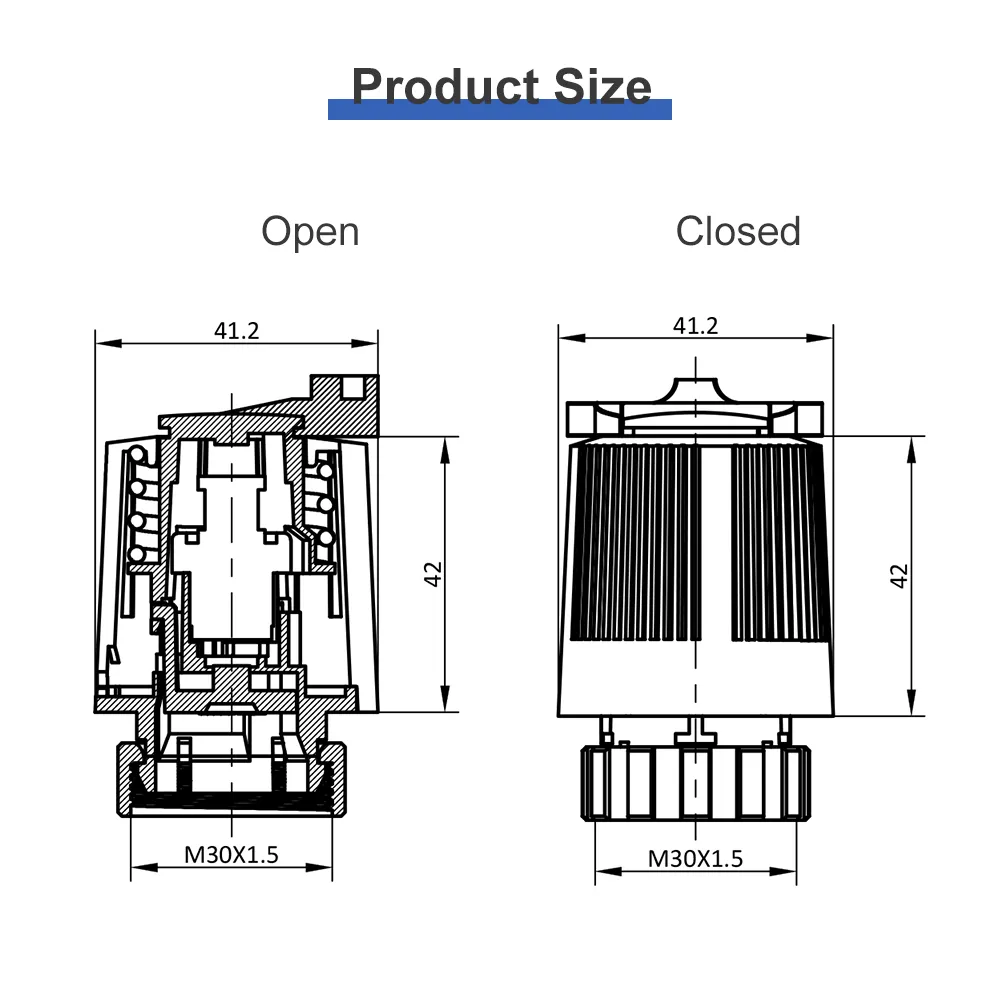

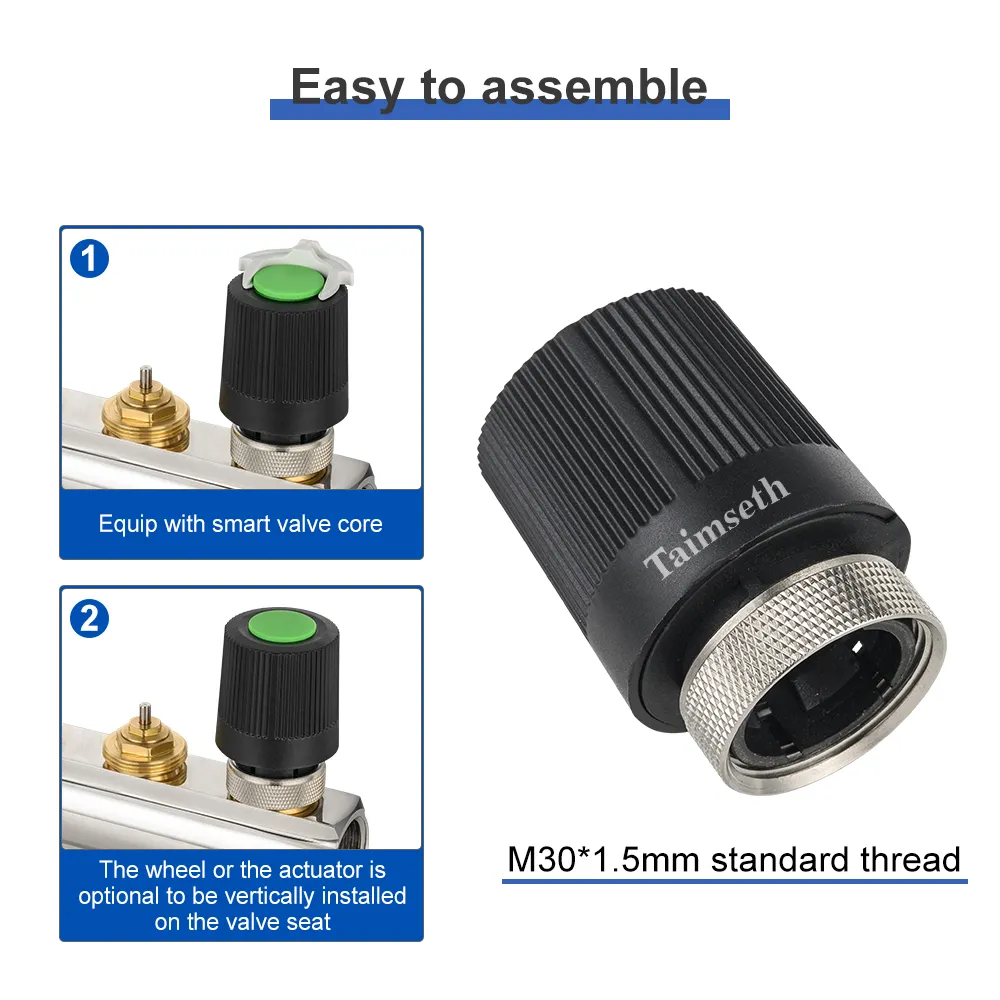

- Connection Size: M30*1.5mm or M28*1.5mm
- Actuation Force: 100N±10%

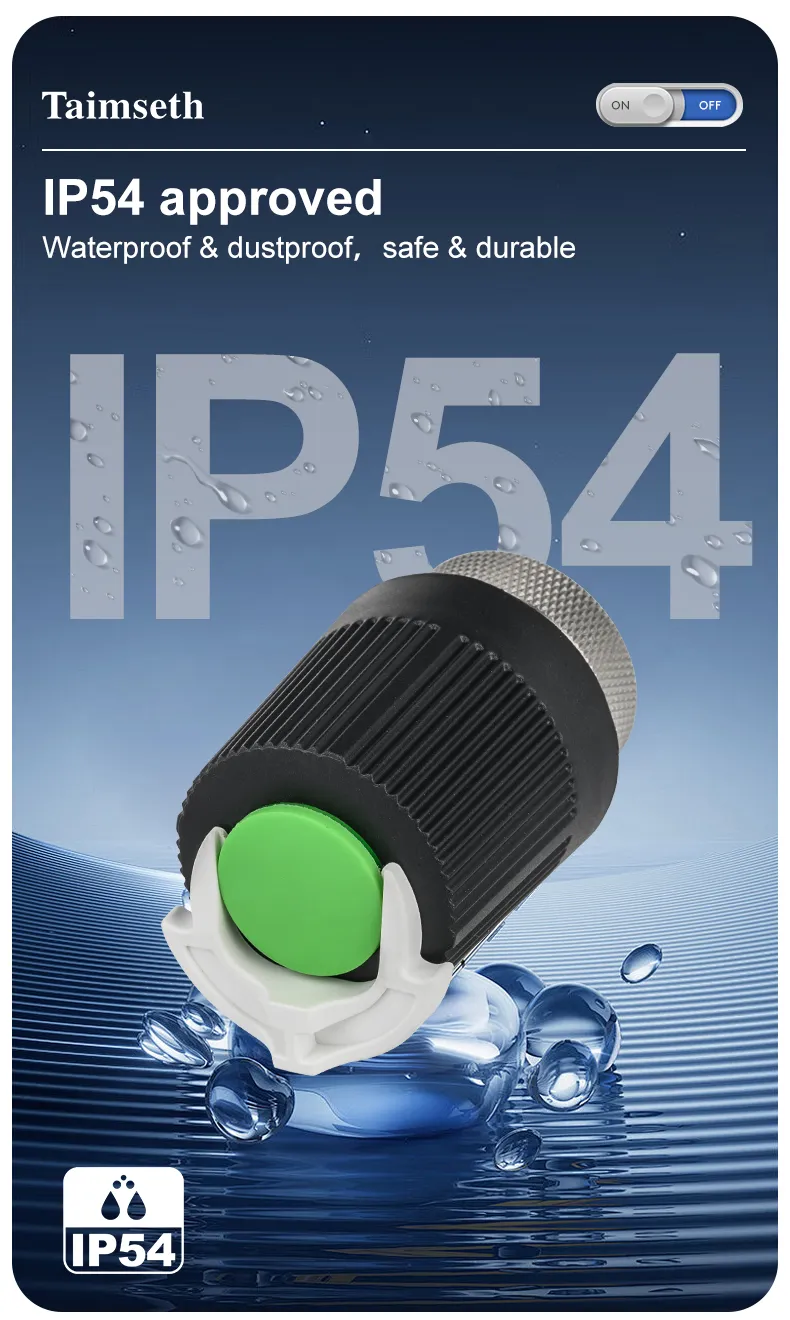

- IP Protecion Class: IP 54
- Power Cord Length: 70mm
- Housing Material: PA66 +30%GF
- Working Temp Range: -5-60℃
- Running time: 3-5 min
